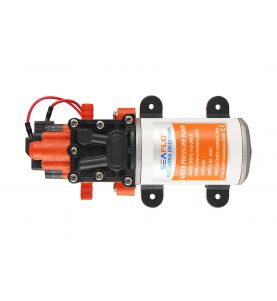

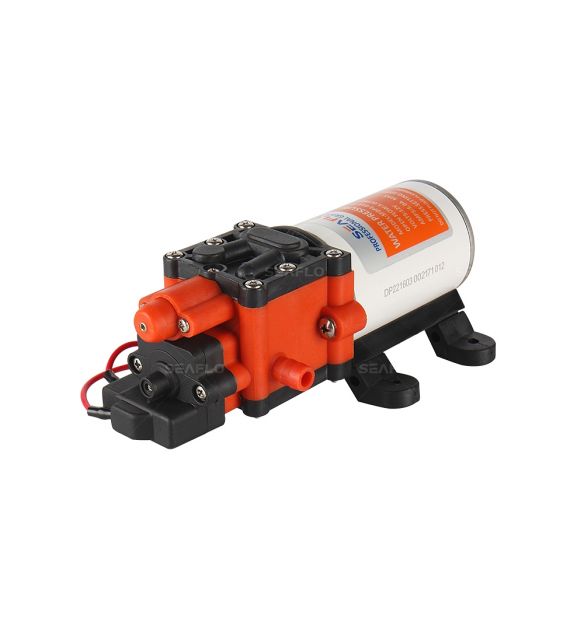

Seaflo Fresh Water Pump 22 Series
R1,265.00
Seaflo Fresh Water Pump 22 Series 12V - 60PSI/4.1Bar - 5 Litres per minute
The 22-Series Fresh water Diaphragm pump is compact and designed for a wide range of applications, The pump is self-priming and can be run dry without harm and has an internal bypass feature which reduces pump cycling and features a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened or closed.
Applications:
- Sprayer fixtures (vehicle-mounted sprayers, electric sprayers)
- Cleaning machines, humidifier, water purification, medical apparatus
- Food beverage filling & liquid transfer
- Solar water system
- Any other pressurization system
Features:
- 2 chamber diaphragm pump
- Intermittent duty
- Industry standard mounting pattern
- Run dry capable for normal workloads
- Automatic: controlled by pressure switch
- Bypass: reduces cycling
- Self priming
- Quiet Operation
- Ignition protected
| 22-Series Seaflo Pump | |
|---|---|
| SKU | SFDP1-013-060-22 |
| Voltage | 12V |

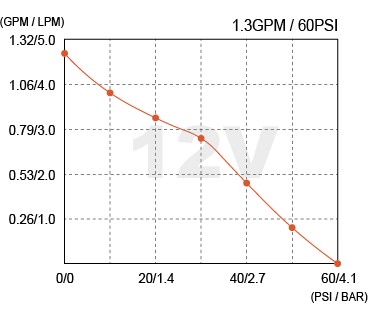

| Open Flow (LPM) | 5.0 |
| Max Draw | 5A |
| Shut off Pressure (PSI/Bar) | 60/4.1 |
| Pump Specifications | |
|---|---|
| Type |
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch & Bypass control |
| Max Recommended Temperature | 60° C (140° F) |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 60 PSI : 48 PSI ±5 PSI (±0.3 bar) 65 PSI ±5 PSI (±0.3 bar) 5 PSI ±5 PSI (±0.3 bar) |

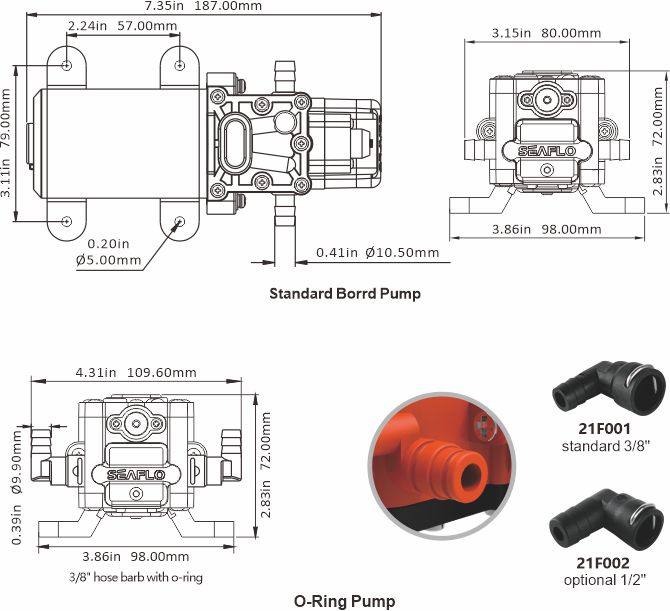

| Inlet/Outlet Ports | 3/8" (10mm) hose barb |
| Weight | 2.4 lbs (1.1 kg) |
| Motor Specifications | |
|---|---|
| Leads | 18 AWG, 10" (25cm) long with 2-Pin connector/leads |
| Duty Cycle | Intermittent |
| Max. Draw | 6.0 A |
| Fuse Amps | 9.0 A |
SFDP101306022
