Hydraulic Steering Mavi Mare GF150BRT Front Mount Compact

Mavi Mare GF150BRT front mount compact hydraulic

steering system for outboards up to 150hp.

Kit composed of :

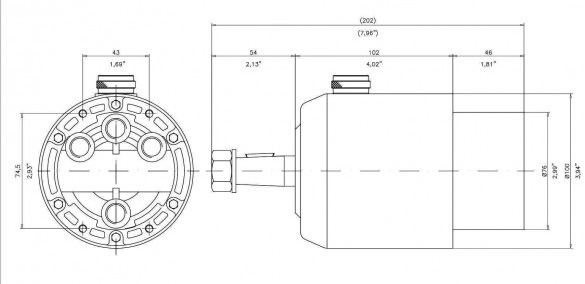

GM0-MRA pump + MC150BR cilinder + chrome plated brass fittings

(1 kit GTN7x10916+ 1 Kit AC10/T916 )+ 2x6 mt SAE100 R7 1/4 hose + 2 lt hydraulic oil.

Steering system kit supplied with 2 hoses of mt 6,00 each , with fittings pressed on one end.

On request is possible to supply the hoses with desiredlength , completely fitted .

Turns hd to hd 4,9.

Performance steering and easy installation.

CYLINDER TECHNICAL FEATURES  :

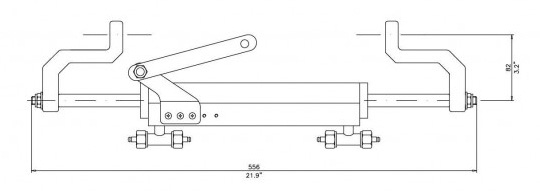

Frontal mounting balanced cylinder "bullhorn" type.

Universal and compact cylinder.

NEW: support rod composed of two pieces for easy and fast installation

expecially with reduced space condition on the splash well.
