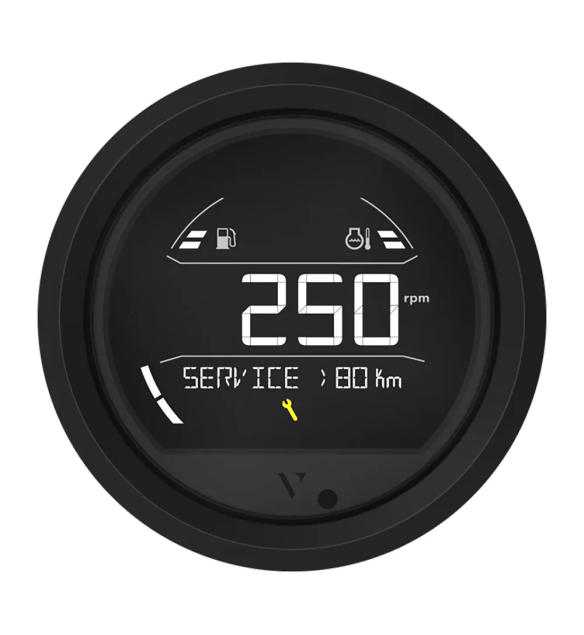

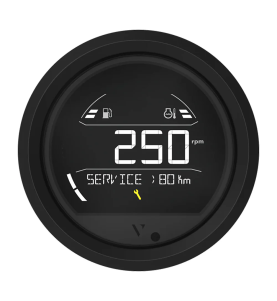

Veratron VL Digital 85mm Multifunctional Gauge

Experience the next generation of instrumentation with VL Digital

where precision meets innovation.

Designed for versatility, it combines high-performance digital technology with intuitive features like:

• Customizable displays
• Multiple input options
• Smart connectivity.

Whether for advanced monitoring or seamless integration, VL Digital offers a modern, user-friendly solution for a wide range of applications.

Highlights

• High-performance digital round gauge
• Can be installed in both, 80 and 85mm holes
• Color segmented display with telltales
• 12/24 V nominal voltage
• Analog and digital (CAN) input (250 and 500 kbit/s)

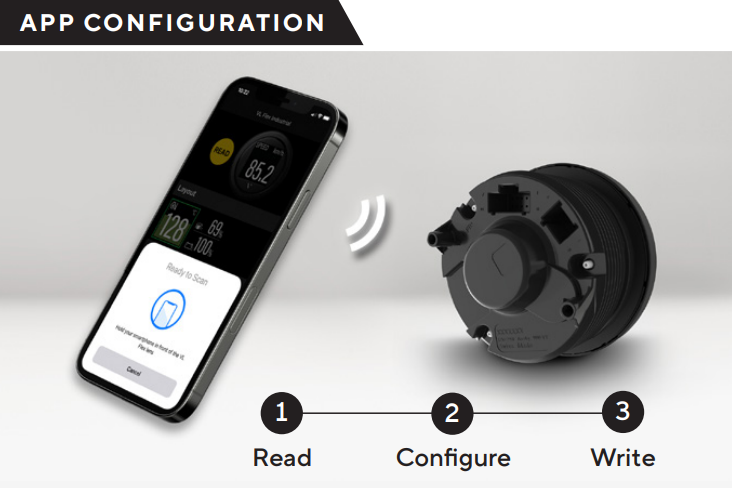

• Configuration via smartphone for easy setup
• Laser pushbutton for seamless data scrolling
• Custom alarm text

• Fast: No prior pairing is required, tap your phone on the gauge to instantly configure it.
• Efficient: Thanks to the passive receiver, you can configure the device powerless!
• Secure: The configuration requires proximity device and can be password protected to avoid tamper.
• Cost-effective: No hardware interface is required.

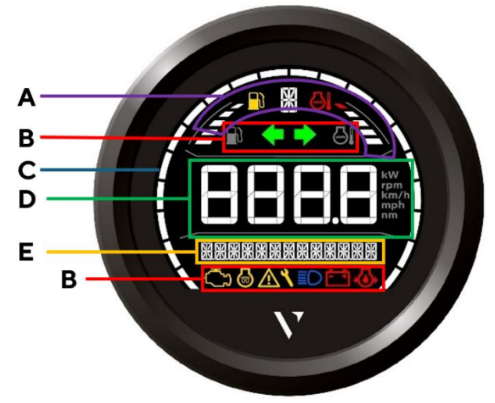

INSTRUMENT LAYOUT

A - Widgets

The top section of the display can be used to indicate the fuel level and engine temperature in a little bar graph. Also an indicator for the gear position is included.

Can Toggle:

• Fuel Level
• Coolant Temp
• Gear Position

B - Telltales

The VL Digital 85 has different telltales. Most are warning signs to alarm the customer about dangerous situations but there are also turn, preheat, and high beam indicators available.

C - Bar Graph

The main measurement value is visualized on a bar graph bent around the center of the screen.

D - Measurement Data

The main measurement values is always visible on the central numerical field, displayed in tall characters.

Selectable:

• Engine Speed (RPM)
• Speed (kmh)

E - Text Section

In the bottom section of the display, there is a text section, which allows the VL Digital to present much more information to the user. With the integrated touch button, the user can scroll through a list of different values.

Selectable:

• Engine Speed
• Coolant Temp
• Fuel Rate
• Engine Load
• Engine Oil Press
• Engine Hours
• Alternator Potential
• PTO
• Odometer
• Fuel Level
• Fresh Water Level
• Battery Voltage
• Battery Current
• Clock
• Speed
• Trip Time A/B
• Trip Distance A/B
• Outside Temp

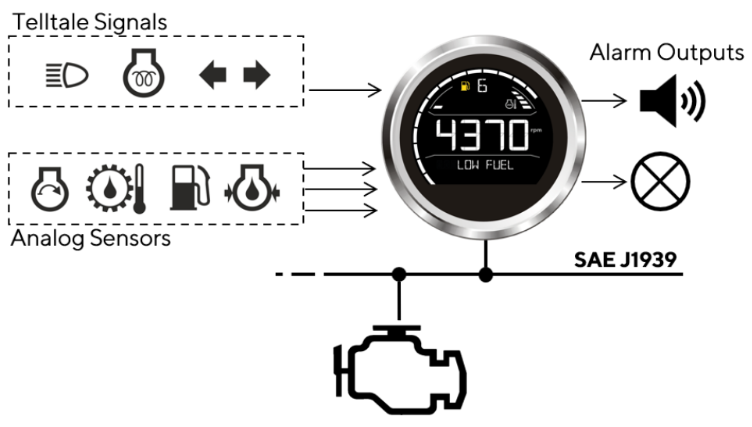

ARCHITECTURE
