Veratron VMH35 Multipurpose Gauge

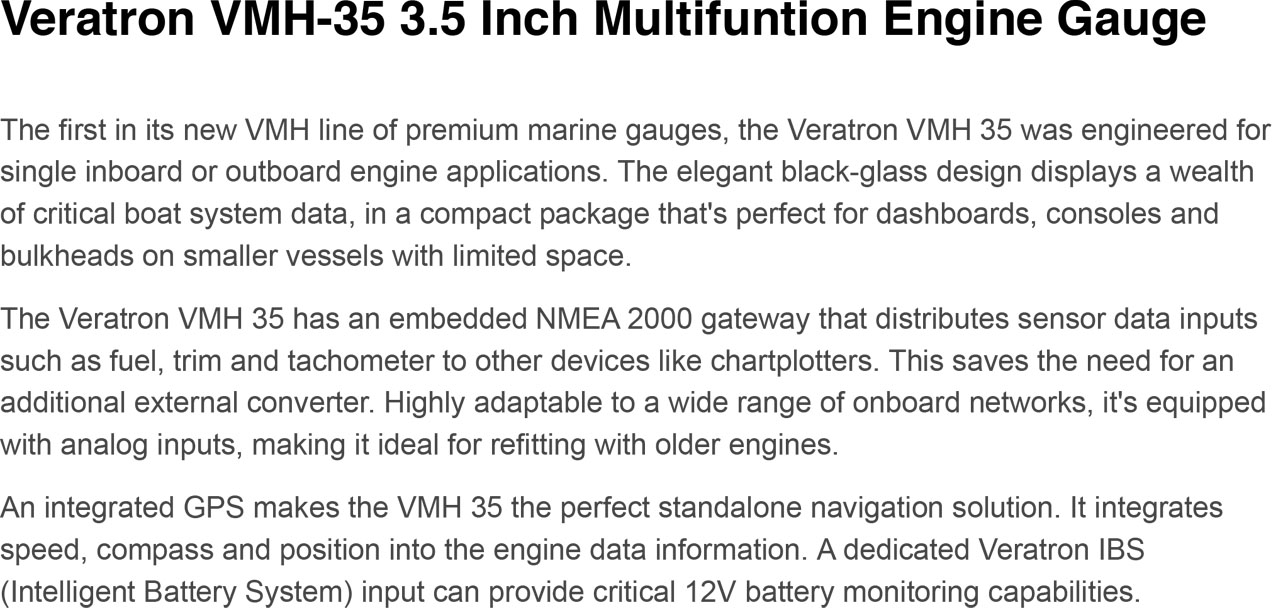

Veratron VMH-35 3.5 Inch Multifuntion Engine Gauge

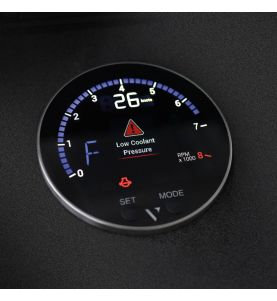

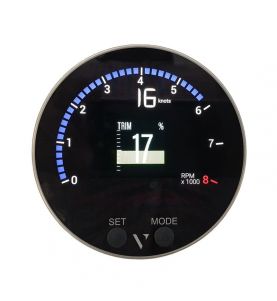

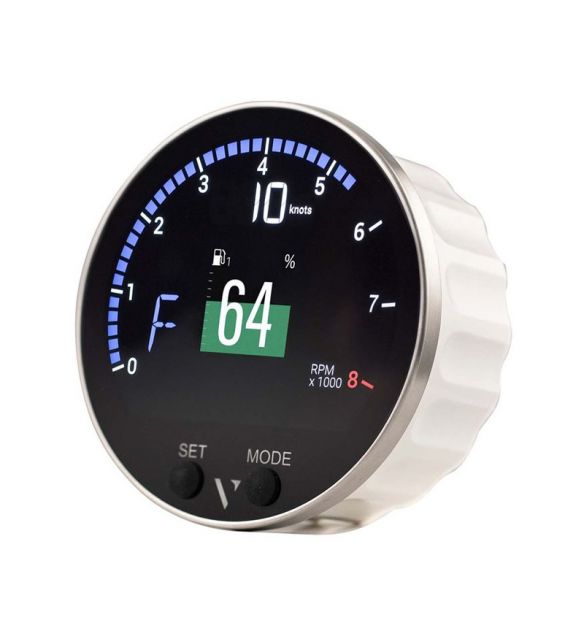

The first in its new VMH line of premium marine gauges, the Veratron VMH 35 was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data, in a compact package that's perfect for dashboards, consoles and bulkheads on smaller vessels with limited space.

The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim and tachometer to other devices like chartplotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines.

An integrated GPS makes the VMH 35 the perfect standalone navigation solution. It integrates speed, compass and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

Features:

• Analog inputs: 2x Resistive / 1x Frequency
• Nominal voltage: 12 V
• Operating voltage: 9 - 16 V
• Current consumption: ≤ 150 mA (normal mode)
• Protection class: IP X7
• Dimensions: 100 mm (outer) 85 mm (mounting hole)
• Front ring: Brushed stainless steel
• Front lens: Mineral glass
• Display: Color IBN + 1.44" TFT optically bonded

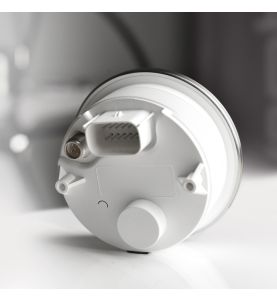

• Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
• NMEA 2000 certified with embedded analog gateway
