VDO Oceanlink 7" TFT Display

The new OceanLink® 4.3" and 7" multifunction TFT Display features a full 24 bit/ 16 m colours optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display, users can customise up to 40 different data pages with single double, treble or quad grid layouts.

TFT Displays can be daisy-chained with other OceanLink® gauges, displays or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.

OceanLink® 7" TFT Display:

• Touch screen function
• Optical bonded mineral glass lens
• Front & rear side protection rating IPX7
• 1x NMEA 2000® connector
• 2x J1939
• 6x Analog input
• 2x Frequency input
• 2x4-20 mA
• 3x Digital input or 0-5 V
• 2x Alarm output
• 2x Video input
• 2x EasyLink data output
• 2x Programmable alarm output 500 mA
• Operating temperature range -20 °C/+70°C

Aftermarket package:

TFT Display, Bezel, Silicone Cover, Mounting Screws, Wiring harness, Installation Instructions, Safety Instructions.

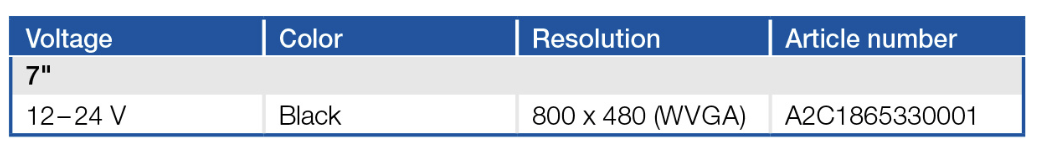

Specs:

VERATRON 2023 PRODUCT CATALOGUE
