Hertz Amplifier HCP 4 MDK 4 Channel

R7,820.00

Quantity

Out-of-Stock

Description
Product Details

Hertz Marine Amplifier

HCP 4MDK

Channel: 4 - 3 - 2 | 2000 W

New HCP 4MDK features latest generation D-Class 20 stable output stage reaching the impressive power RMS of 150 W x 4 with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), providing the ability to build a two zone stereo or a single zone stereo system with subwoofer.

The dissipation system is optimised with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 4MDK four channels marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power.

The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. slopes and Bass Boost to enhance low frequencies.

LATEST GENERATION D-CLASS

Latest generation D-Class 20 stable

output stage reaching the impressive RMS power of 150 W x 4 with the excellent S/N ratio of 105 dB.

AB-CLASS OUTPUT STAGE

Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 2stable output stage.

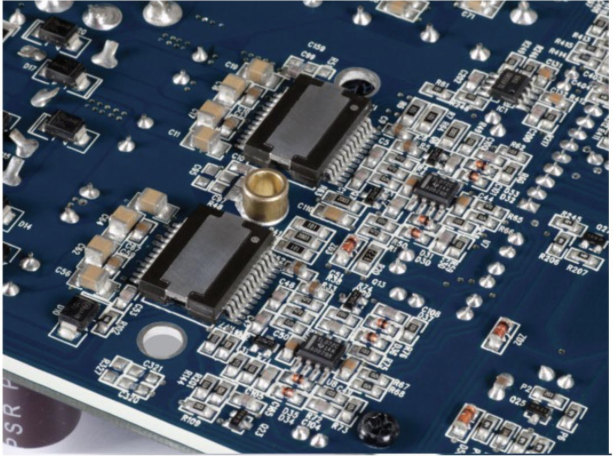

CORROSION PROTECTION

Electronics components corrosion caused by exposure in wet environments is totally neutralised by the use of dedicated marine grade (epoxy coated) PCB boards.

SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this

WATER JET TESTED

The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the

marine environment.

Input/Output

Hertz Amplifier HCP 4 MDK 4 Channel

General Specs

Channels	4-3-2
POWER SUPPLY
Power supply voltage / fuse:	11 ÷ 15 VDC / 2 x 35 A
Idling current (power ON/OFF)	1.6 A / 0.05 mA
Consumption @ 29, 14.4 VDC. (Max Musical Power):	40 A
Remote In:	4 ÷ 16 VDC - 1 mA
ART:	Automatic Remote Turn-On/Off with Speaker-In
AMPLIFIER STAGE
Distorsion - THD (100 Hz @ 42 ohm):	0.03%
Bandwidth:	10 ÷ 35k Hz
S/N Ratio (A weighted @ 1 V):	105 dB
Damping factor (100 Hz @ 4 2):	200
Pre-In sensitivity:	0.2 ÷ 5 VRMS
Speaker-In sensitivity:	0.8 ÷ 20 VRMS
Load impedance (MIN)
@ 4 Ch:	20
@ 3 Ch:	20+22+42
@ 2 Ch:	49
Max size (mm / in.):	315 × 190 × 50 / 12.40 x 7.48 x 1.97
Weight (kg / lb.):	2,73 / 6.01
Adjustable Crossovers	yes

INPUTS / FILTERS

INPUTS :	PRE IN / SPEAKER IN
Pre out FULL range (FRONT)	Yes
FRONT Ch. filters FULL	Yes
Hi-Pass:	50 ÷ 3.2k Hz @ 12 dB/Oct
Lo-Pass:	50 ÷ 3.2k Hz @ 12 dB/Oct.
REAR Ch. filters FULL:	Yes
Hi-Pass:	50 ÷ 3.2k Hz @ 12 dB/Oct
Lo-Pass:	50 ÷ 3.2k Hz @ 12 dB/Oct.
FRONT Ch. MONO (on/off):	Yes
REAR Ch. MONO (on/off):	Yes
BOOST 50 Hz (adjust):	(0 ÷ 12) dB

Output Power

Output Power (RMS) @ 14.4 VDC, THD 1%
4 Ch:	120 W x 4(4 ohm)
4 Ch:	220 W x 4 (2 ohm)
3 Ch:	120 W x 2 (4 ohm) + 440 W x 1 (40)
3 Ch:	220 W x 2 (4 ohm) + 440 W x 1 (4 2)
2 Ch:	440 W x 2(4 ohm)
Output Power (RMS) @ 14.4 VDC, THD 10%:
4 Ch:	150 W x 4 (4 ohm)
4 Ch:	250 W x 4 (2 ohm)
3 Ch:	150 W x 2(4 ohm) + 520 W x 1 (4 2)
3 Ch:	250 W x 2 (2 ohm) + 520 W x 1 (4 0)
2 Ch:	520 W x 2 (4 ohm)
CEA 2006-A Ratings:
RMS Power (4 , ≤1 %THD + N, 14.4 V):	110 W x 4 Ch
S/N Ratio (ref. 1 W output):	85 dBA
Total Power 2000W
