Hertz Amplifier HCP 2MX 2 Channel

Hertz Marine Sound System Amplifier

Model: HCP 2MX

Ch: 2 - 1 1 800 W

The HCP 2 MX marine amplifier features a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation.

To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered, built up heat is then directed to the special dissipation "wings" along the side of the amplifier. Both Pre-In and Speaker- In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results.

The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 2 MX features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.

AB-CLASS OUTPUT STAGE

Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 2 stable output stage.

CORROSION PROTECTION

Electronics components corrosion caused by exposure in wet environments is totally neutralised by the use of dedicated marine grade (epoxy coated) PCB boards.

SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this

WATER JET TESTED

The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the

marine environment.

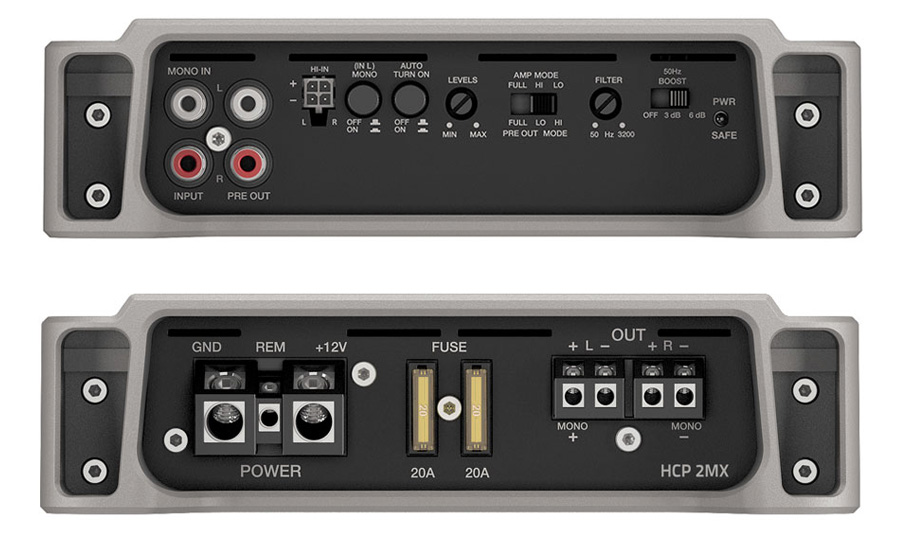

Input/Output

General Specs

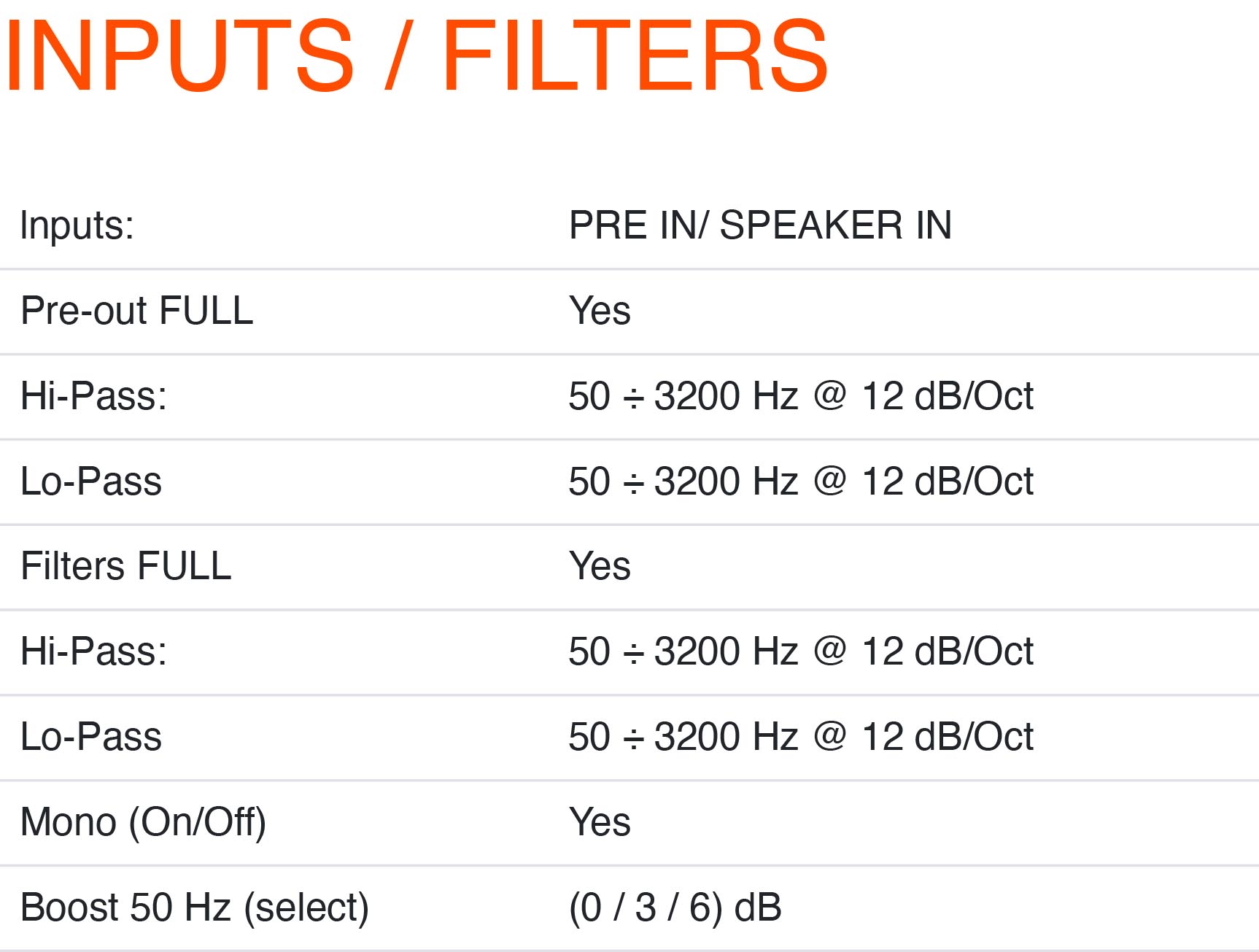

INPUTS / FILTERS

Output Power

 Hertz HCP 2MX Amplifier Technical Data Sheet

 HERTZ MARINE 2023 CATALOGUE
