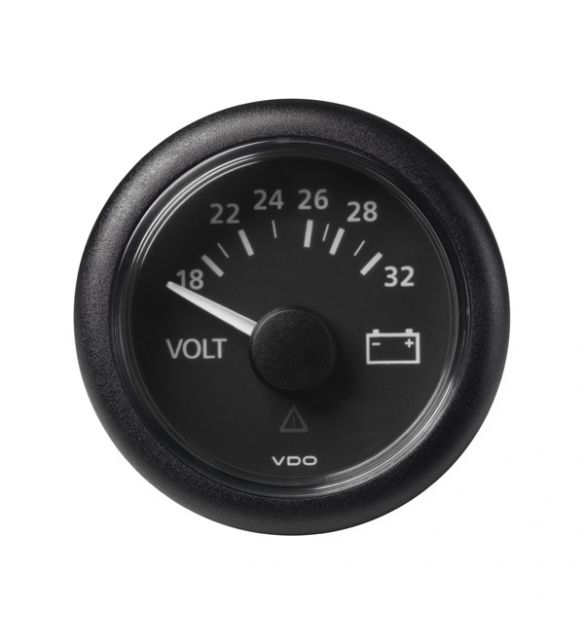

Veratron Viewline 52mm Battery Status 18-32v

Battery Status

The ViewLine 52 mm Ammeter shows the level of current being drawn and the current supply on a clearly readable dial. The shunt (a measurement resistor) can be inserted into the measurement point in a matter of seconds.

The voltmeter displays the status of generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly. Even potential deep discharges can be detected.

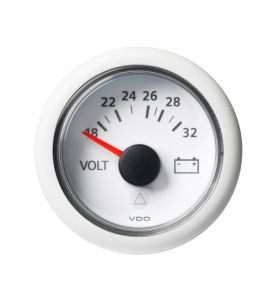

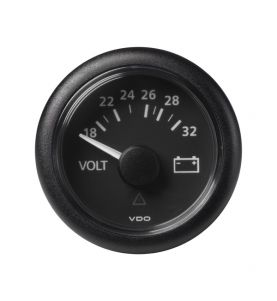

ViewLine 52mm Gauges The VDO Marine ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with round bezel in identical colour.

ViewLine accessories bezel concept offers true design flexibility in the layout of instrument panels. The three attractive designs in black, white or chrome are suitable for every machinery instrument panel or special vehicle cockpit.

Specifications:

• 8 pole Tyco /Hirschmann MQS plug
• +/-3.6° angle degree accuracy over the entire display range
• Operating voltage 8-32 V
• Integrated warning alarm
• Input signal: standard s values
• Optional make-point switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation dept
• Aftermarket package:

Gauge, Bezel, Rubber Seal, Spinlock, Connection cable, Installation Instructions, Safety Instructions
