Shakespeare Antenna Galaxy Emergency INFL8

NEW

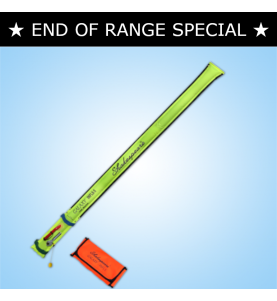

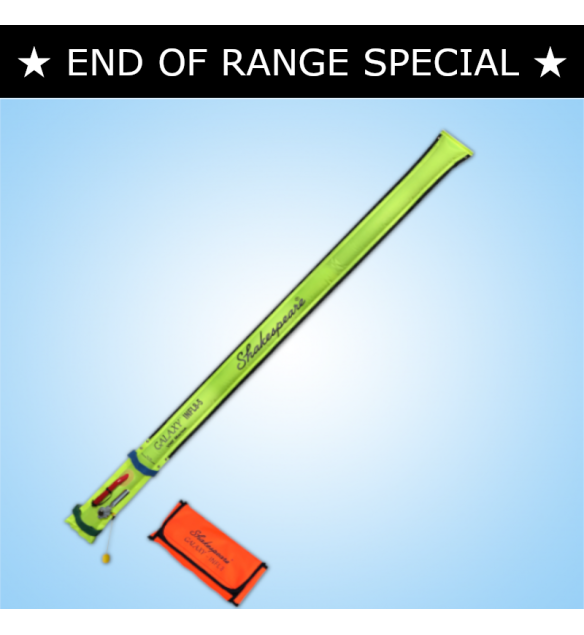

INFL8-5 5', 3dB GALAXY®-INFL8 VHF, Inflatable Antenna

The GALAXY INFL8-5 is Shakespeare's first emergency antenna with the performance to earn the Shakespeare GALAXY name, it is an inflatable antenna that can be rapidly deployed via a CO2 cartridge or a manual tube and inflates to 5 ft (1.6 m) to offer a full 3dB antenna with a range of up to three times greater than any existing Shakespeare helical emergency antenna.

Thanks to its inflatable design, the antenna can be deflated and stowed away safely in its easy-to-spot storage bag until it is needed again, the antenna can be mounted with its hook and loop straps allowing for quick and easy installation in any weather to stanchions, outriggers or other vertical structures on board.

The antenna also features grommets on the top and bottom to facilitate hanging and securing to spreaders, masts, hard tops and other structures even in case the inflatable bladder becomes damaged.

The connectors included in the package allow for versatile connection options. The pre-soldered PL-259 connector allows connection to a Fixed VHF directly or a handheld via the included SMA Adaptor.

• Inflatable to Full 5ft.

• Full 3dB performance in an emergency antenna.

• Rapid & rigid inflation.

• Versatile mounting options through Straps & Grommets along the edges.

• Manually Inflatable. Compatible with most fixed mount and handheld

• VHF Radios
