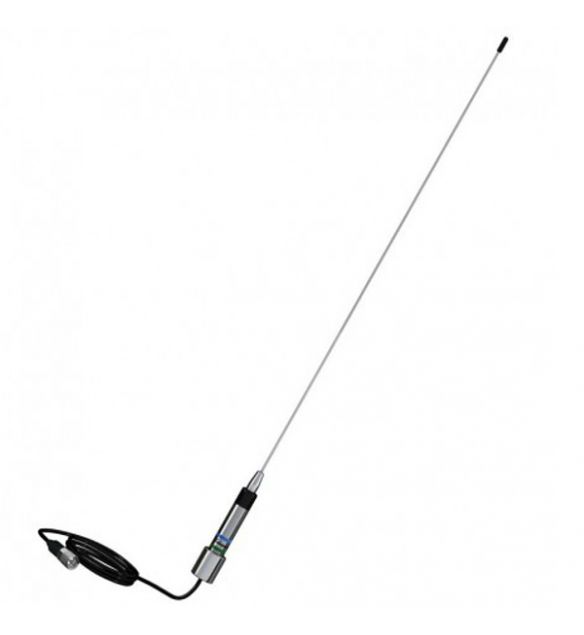

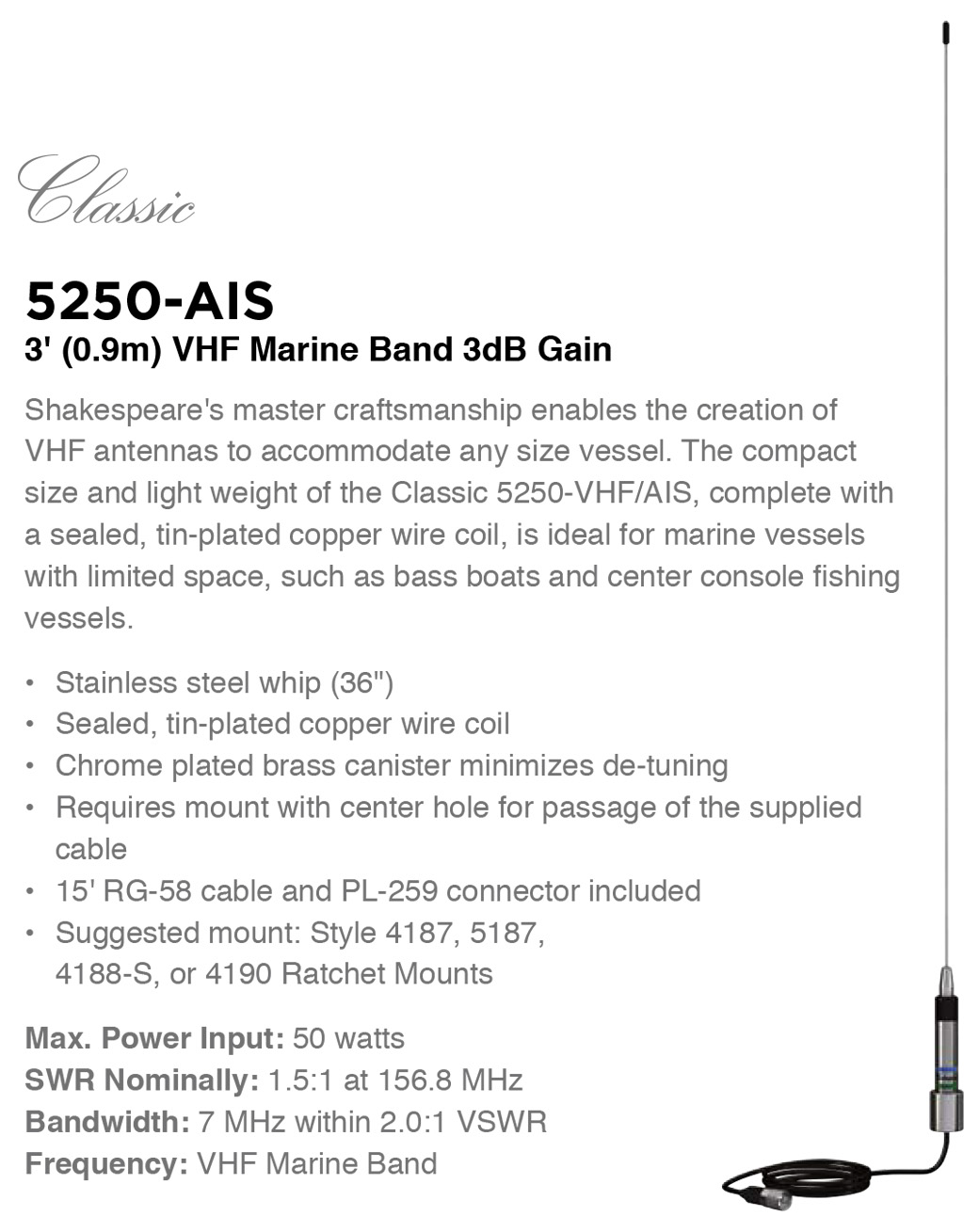

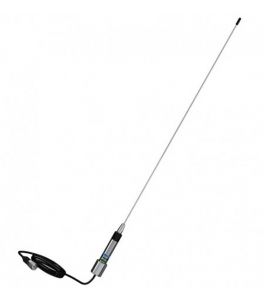

Shakespeare Antenna 5250-AIS Skinny Mini

5250-AIS

3' (0.9m) VHF Marine Band 3dB Gain

Shakespeare's master craftsmanship enables the creation of VHF antennas to accommodate any size vessel, the compact size and light weight of the Classic 5250-VHF/AIS, complete with a sealed, tin-plated copper wire coil, is ideal for marine vessels with limited space, such as bass boats and center console fishing vessels.

• Stainless steel whip (36")
• Sealed, tin-plated copper wire coil
• Chrome plated brass canister minimizes de-tuning

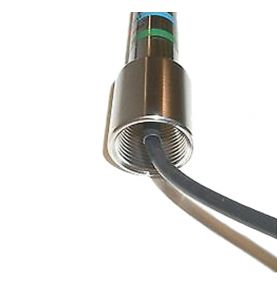

• Requires mount with center hole for passage of the supplied cable
• 15' RG-58 cable and PL-259 connector included
• Suggested mount: Style 4187, 5187, 4188-S, or 4190 Ratchet Mounts
• Max. Power Input: 50 watts
• SWR Nominally: 1.5:1 at 156.8 MHz
• Bandwidth: 7 MHz within 2.0:1 VSWR
• Frequency: VHF Marine Band
