- New

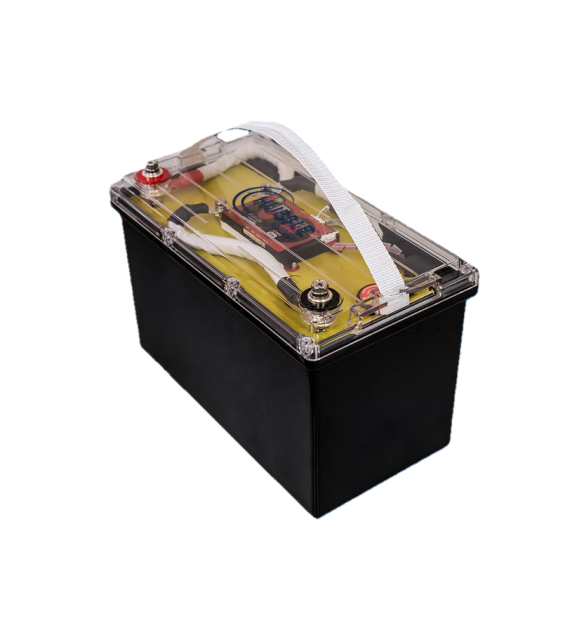

Battery Hubble Lithium S-100B
R5,850.00
Hubble S100-B
The Hubble S-100B is a high performant 100Ah lithium battery, ideal for providing reliable, lightweight energy on boats, caravans, motorhomes, travel trailers, and any other application that demands efficient and durable power.
Avoid power outages and stay in control!
Now featuring a Bluetooth-enabled Battery Management System (BMS), you can easily track your battery’s status in real time. Make informed decisions and never get caught without power when you need it most.
Key Features
- Low self-discharge
- High cycle and service life
- Advanced Internal Battery Management System (BMS) with event logging
- High energy density and conversion efficiency
- Can be configured in 12V, 24V, 36V or 48V in series
- BMS protects internal cells and ensures smooth operation
- Built-in protection for over-charge, over-discharge & over-temperature
- Compatible with most UPS & Inverters using AGM/VRLA charge settings
- Suitable for lead acid replacement when paired with lithium-compatible inverters
- Up to 4 parallel strings (100Ah, 200Ah, 300Ah or 400Ah) per solution to a maximum of 16 units
- Integrated Bluetooth communication with a downloadable App
Technical Specifications
| Rated Capacity (5HR) | 100 Ah |
| Nominal Voltage | 12.8 V |
| Discharge Ending Voltage | 12 V |
| Charging Limited Voltage | 14.4 V |
| Max. Continuous Charging Current | 100 A |
| Max Continuous Discharging Current | 100 A |
| C Rating | 1.0 C |
| Depth of Discharge | 100% |
| Weight | Approx. 10.5 Kg |
| Configuration | 4 in series with 4 banks in parallel for maximum 16 batteries |
| Parallel | Parallel connection is up to 4 strings |
| Dimensions (WxDxH) mm | 340mm x 185mm x 235mm |
| Maximum DC Limits | Max 100A charge per bank & 100A discharge per bank |
| Cells | Premium 1st Life Prismatic LiFePO4 |
| Design Life | +/- 15 Years |
| Cycle Life @ 1C | +/- 4000 Cycles |
| Certification | CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015 |
| Outer Package Material | Black Polypropylene Plastic |
| Operating Temperature | Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
| IP Rating | IP65 |
| Monitoring | Bluetooth App (Smart BMS by DalyBMS - available on Android and iOS) |
HES100B
