Battery Hubble Lithium S-100A

R4,899.00

Quantity

This item must be sent via Roadfreight

Description
Product Details

Hubble Lithium Battery S-100A

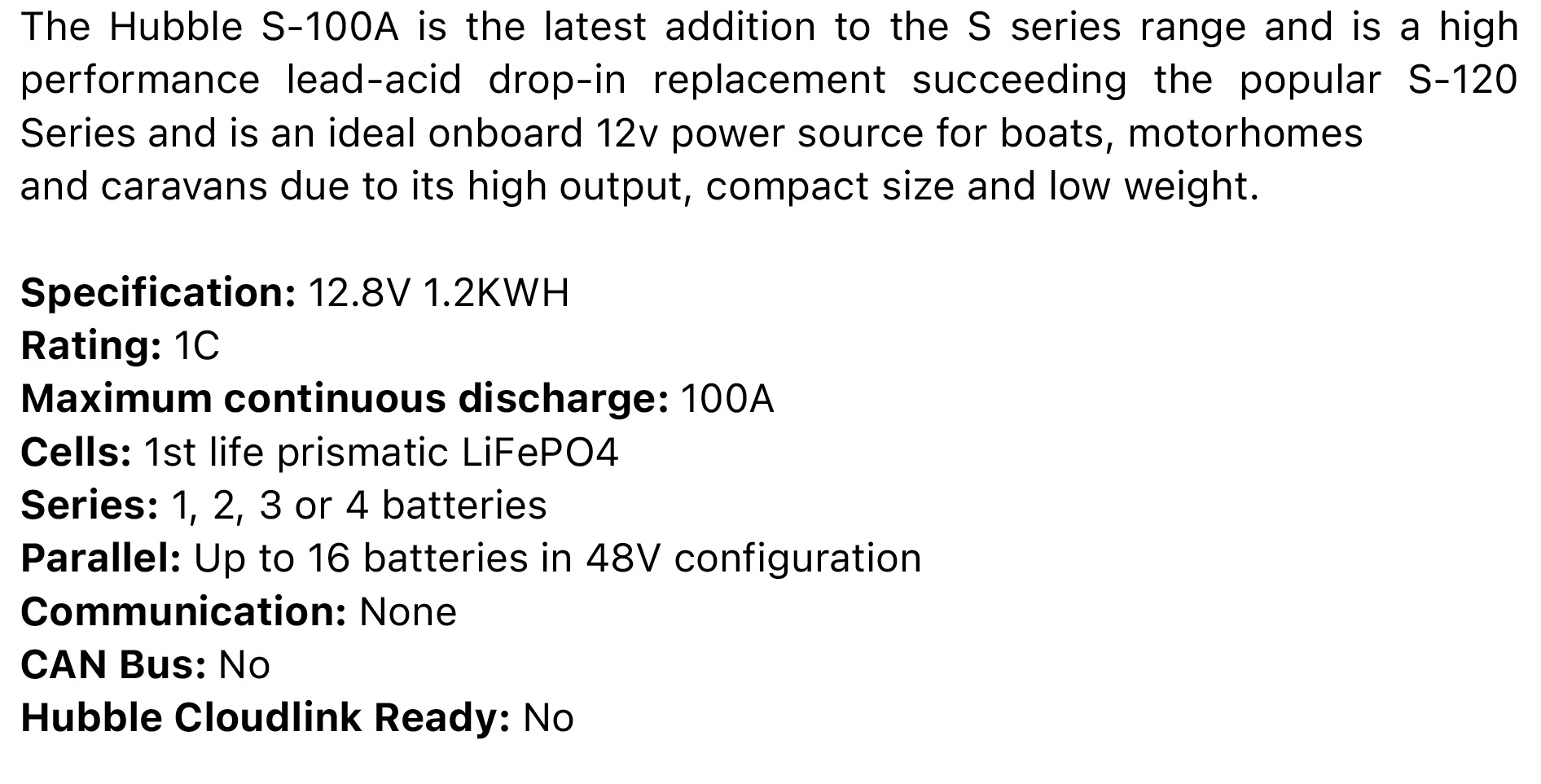

The Hubble S-100A is the latest addition to the S-Series range and is a high-performance lead-acid drop-in replacement succeeding the popular S-120 Series.

It’s an ideal onboard 12V power source for boats, motorhomes, and caravans thanks to its high output, compact size, and low weight.

Key Features

Low self-discharge
High cycle and service life
1C high-performance lithium battery
Internal Battery Management System (BMS)
Excellent high temperature performance
High energy density and conversion efficiency
Can be configured in 12V, 24V, 36V or 48V in series
BMS protects internal cells and ensures smooth operation
Built-in protection for over-charge, over-discharge & over-temperature
Compatible with most UPS & Inverters using AGM/VRLA charge settings
Suitable for lead-acid replacement when paired with lithium-compatible inverters
Can parallel up to 16 batteries in 48V configuration (4 in series and 4 in parallel)

Technical Specifications

Rated Capacity (5HR)	100 Ah
Nominal Voltage	12.8 V
Discharge Ending Voltage	12 V
Charging Limited Voltage	14 V
Max. Charging Current	100 A
Max. Continuous Discharging Current	100 A
Cell C Rating	1.0 C
Weight	Approx. 10.5 kg
Configuration	4 in series with 4 banks in parallel (max 16 batteries)
Parallel	Up to 4 strings
Dimensions (W x D x H)	305 mm x 170 mm x 220 mm
Maximum DC Limits	100 A charge / 100 A discharge per bank
Cells	1st Life Prismatic LiFePO4
Design Life	+/- 15 Years
Cycle Life @ 1C	+/- 4000 Cycles
Certification	CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material	Black Polypropylene Plastic
Operating Temperature	Charging: 0–55°C \| Discharging: -20–55°C \| Storage: -20–55°C
Protection	Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
IP Rating	IP65
