Actisense THE PRO RANGE

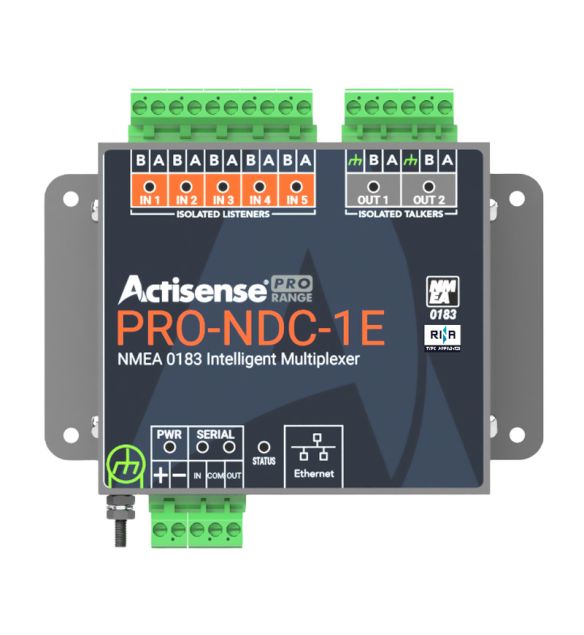

The PRO-NDC-1E is more than just an NMEA 0183 Multiplexer... Rugged, Robust, Type Approved Multiplexer with powerful, advanced features enable baud rate adjustments, auto-switching and sentence level filtering.

Managing and routing your NMEA 0183 data is straight forward, hassle free using the PRO-NDC-1E.

Operational Features

• Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
• Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
• Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
• Easy to configure using the web based Ul, no need to manually enter and edit strings of text.
• RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
• Multiple LED's allow for 'quick glance' diagnostics to ensure everything is operating correctly.
• NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
• 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.

Use Case

Multiplexers are typically used to combine multiple instruments data output into a smaller number of outputs. As you can't connect two talkers to one listener directly, a multiplexer allows for the data to be output through one talker connection.

An example of this could be on a commercial vessel with multiple NMEA 0183 GPS, wind, AIS and depth instruments to get all of this data combined and sent to a display or converted via an NGX to NMEA 2000, a PRO-NDC-1E can be used.

With the PRO-NDC-1E, the data can be filtered, passed or blocked and monitored, giving greater flexibility and control over all instrument data, the device also carries the ability to stream NMEA 0183 over Ethernet, meaning it can connect to other existing Ethernet Systems and share the 0183 data to various connected applications or devices.

Features

• Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology)
• Serial port can be used as additional input / output
• Ethernet port supports direct and network connection
• NMEA 0183 streaming via Ethernet
• Configurable input and output baud rates
• Allows Data combining and rate conversion
• 2 independent Autoswitch virtual inputs with priority
• Isolation to battery supply
• Diagnostic LED's
• Optional DIN rail mount
• Type Approve

Benefits

• Quick and easy to install
• Configuration using standard web browser, no PC operating system compatibility issues
• Advanced features solve NMEA 0183 data routing problems
• Fully isolated with ISO-Drive technology for peace of mind
• Easy firmware updates make the device future-proof
