Actisense USB to Serial Gateway USG 2

R3,220.00

Quantity

In Stock

USG-2 USB to Serial Gateway

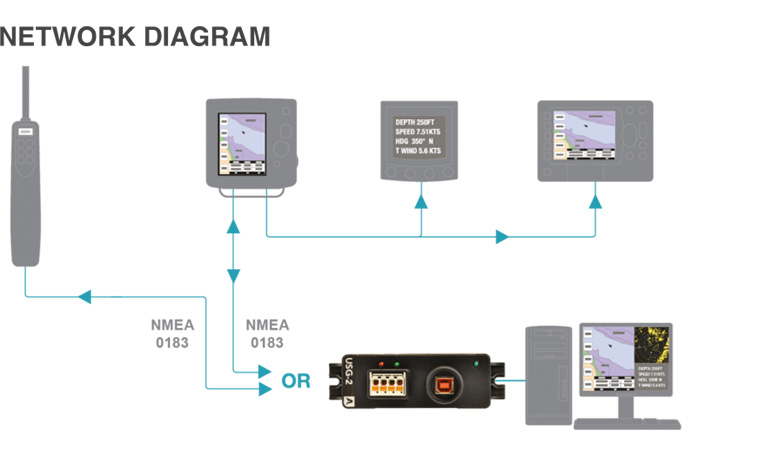

The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network. The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.

FEATURES

NMEA 0183, RS422 & RS232 compatible
ISO-Drive ™ technology
Pluggable screwless connector with locking latch & strain relief
Encapsulated electronics
High retention USB socket
Diagnostic & power LEDs
Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit
Pluggable screwless connector

BENEFITS

Inputs & outputs protected against over voltage, ESD & short circuits
Simple installation
Protects PC from damage
Eliminates ground loops
No firmware which means no configuration needed
Isolated inputs and outputs protect PC from damage
Compatible with all NMEA 0183 devices
Encapsulated electronics make the USG-2 robust for the harsh marine environment
High retention USB socket
Diagnostic LEDs to aid diagnosis
Baud rates from 300 to 230400 bps suit all NMEA 0183 networking bandwidths
Bulkhead mount, with optional DIN rail mount kit for quick and easy installation
Pluggable screwless connector with locking latch & strain
