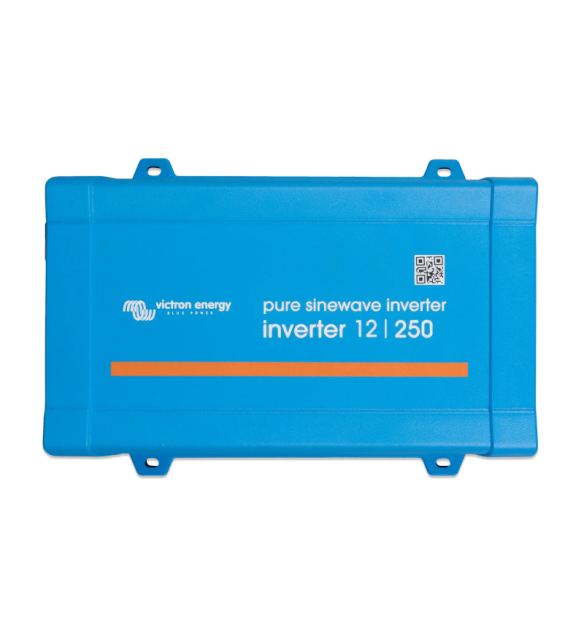

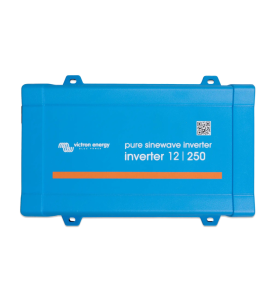

Victron 12V Inverter VE.Direct

Victron Inverter VE.Direct

Inverters allow you to power domestic equipment - requiring 230VAC - using 'leisure' or 'automotive' batteries.

Proven reliability

The inverter uses a full bridge with toroidal transformer topology that has proven its reliability over many years. It is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High startup power

To start loads such as: power converters for LED lamps, filament lamps or electric tools.

ECO mode

ECO mode reduces the inverter power consumption by approximately 85% by going into standby operation when there are no loads connected to the inverter. When the inverter has been switched to ECO mode, it will enter standby operation when the load is less than a preset value. While in standby operation, the inverter will check every few seconds if the load has increased again. If the load has increased, the inverter will leave standby operation and resumes regular inverter operation. The sensitivity of the ECO mode is configurable.

Fully configurable

• AC output voltage and frequency.
• Low battery voltage cut-off and restart levels.
• ECO mode on/off and ECO mode sensitivity level.

The VictronConnect app

The VictronConnect app is used to monitor, control and configure the inverter. The app can be installed on a phone, tablet or computer. The app is available for Android, iOS, Windows and macOS. The app either communicates via Bluetooth or via USB interface to the VE.Direct port.

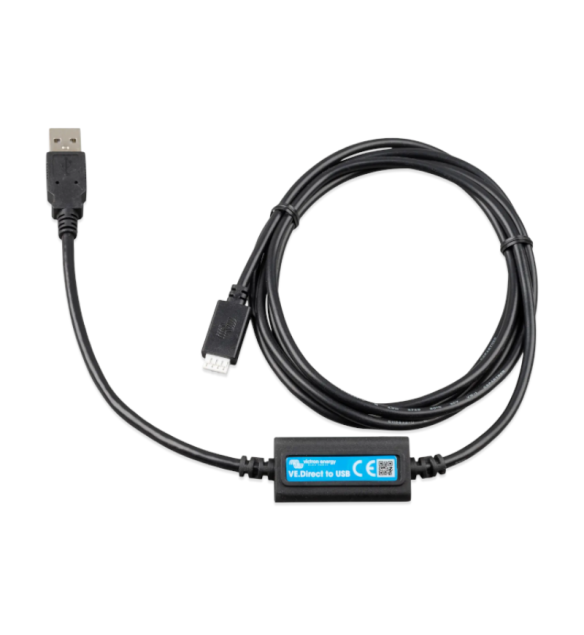

VE.Direct to USB interface

 Bluetooth

The inverter does not have built-in Bluetooth. To be able to communicate via Bluetooth use the (optional) VE.Direct Bluetooth Smart dongle. Bluetooth (but also a VE.Direct connection) can be used to communicate with the VictronConnect app.

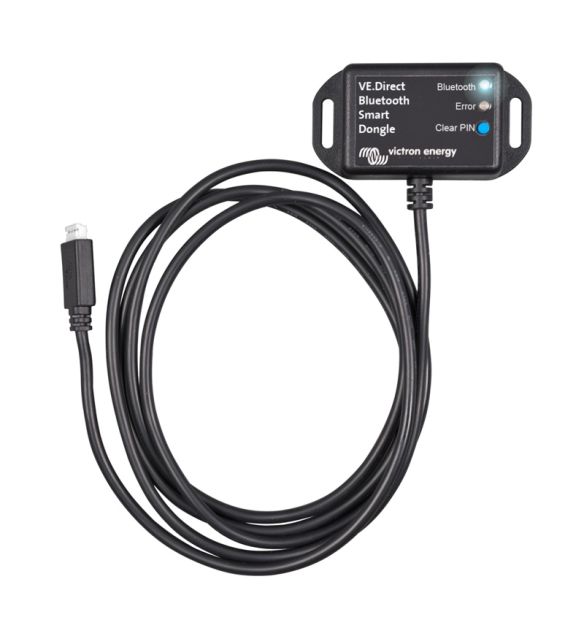

VE.Direct Bluetooth Dongle

VE.Direct port

The inverter is equipped with a VE.Direct port. This port can be used to connect the inverter to:

• The VictronConnect app via a VE.Direct to USB interface.
• The VictronConnect app via a VE.Direct Bluetooth Smart dongle.
• A GX monitoring device, such as the Cerbo GX. Note that an additional VE.Direct cable is needed for this.
