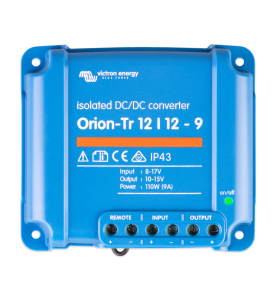

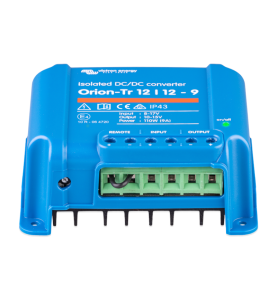

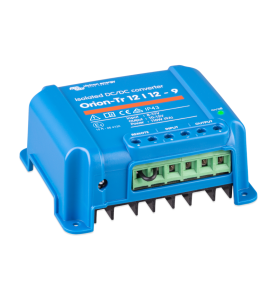

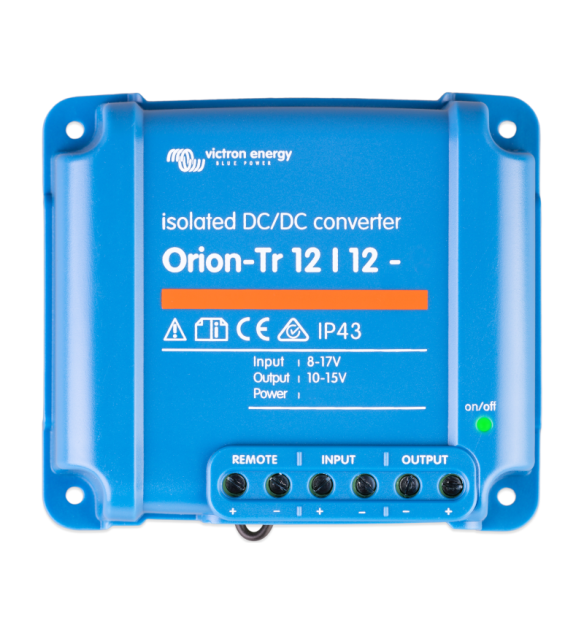

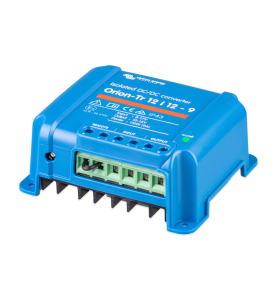

Victron Orion TR DC-DC Isolated Converter 12/12

Victron Orion TR DC-DC Converter 12V to 12V - Isolated

R1,090.00

Victron Energy


AMPS

Quantity

In Stock

Victron Orion TR DC-DC Converter 12V to 12V - Isolated

Available in 9, 18 or 30 amps. Please select amperage required above when purchasing.

Remote on/off

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input fuse

On 12V and 24V input models only.

Orion-Tr 12/12-9 (110 W)
Input voltage range	8-17 V
Under voltage shut down	7 V
Under voltage restart	7,5 V
Nominal output voltage	12.2 V
Output voltage adjust range	10-15 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current (25°C)	9 A
Max. output current (10 s)	12.5 A
Short circuit output current	32 A
Cont. output power (25°C)	110 W
Cont. output power (40°C)	85 W
Efficiency	87 %
No load input current	< 50 mA
Weight	0,42 kg (1 lb)
Dimensions hxwxd	100 x 113 x 47 mm
Max cable cross-section	6 mm² AWG10

Orion-Tr 12/12-18 (220 W)
Input voltage range	8-17 V
Under voltage shut down	7 V
Under voltage restart	7,5 V
Nominal output voltage	12.2 V
Output voltage adjust range	10-15 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current (40°C)	18 A
Max. output current (10 s)	25 A
Short circuit output current	40 A
Cont. output power (25°C)	280 W
Cont. output power (40°C)	220 W
Efficiency	87 %
No load input current	< 80 mA
Weight	1,3 kg (3 lb)
Dimensions hxwxd	130 x 186 x 70 mm
Max cable cross-section	16 mm² AWG6

Orion-Tr 12/12-30 (360 W)
Input voltage range	8-17 V
Under voltage shut down	7 V
Under voltage restart	7,5 V
Nominal output voltage	12.2 V
Output voltage adjust range	10-15 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current (40°C)	30 A
Max. output current (10 s)	40 A
Short circuit output current	60 A
Cont. output power (25°C)	430 W
Cont. output power (40°C)	360 W
Efficiency	87 %
No load input current	< 80 mA
Weight	1,8 kg (4 lb)
Dimensions hxwxd	130 x 186 x 80 mm
Max cable cross-section	16 mm² AWG6
