Hertz Speaker HMX 6.5 inch 150W

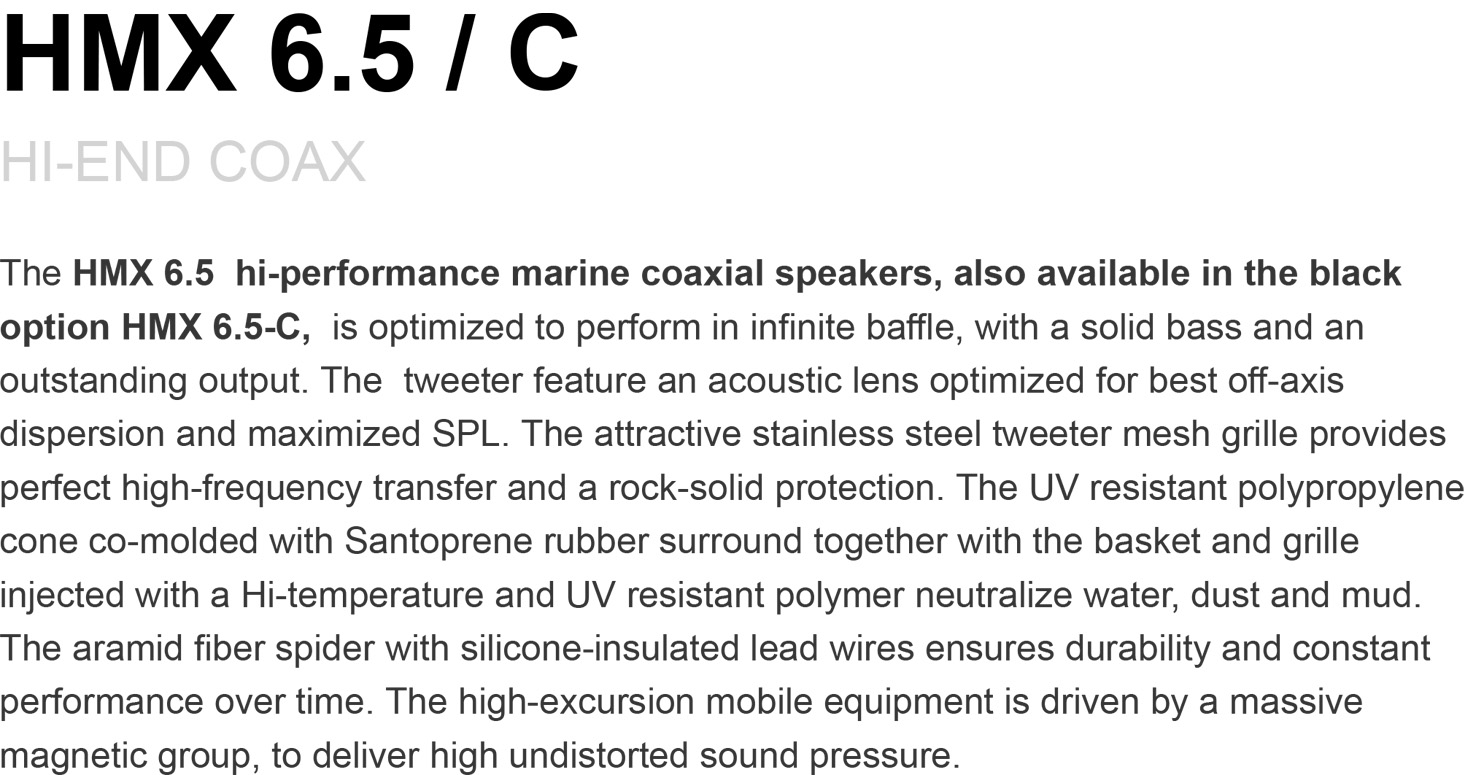

HERTZ HMX 6.5/C

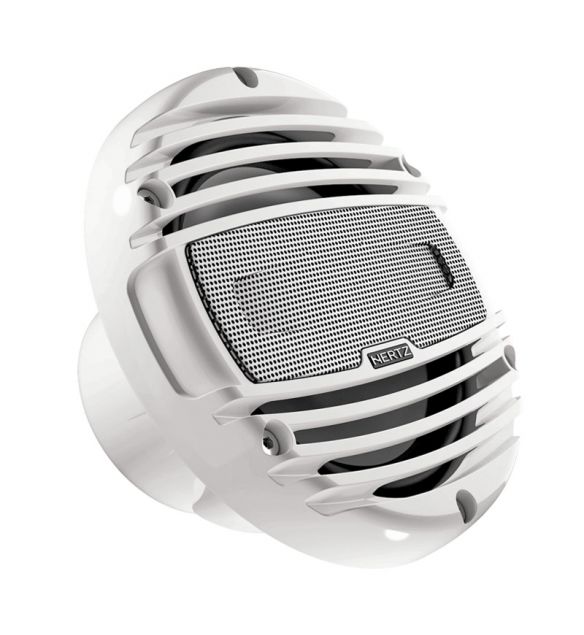

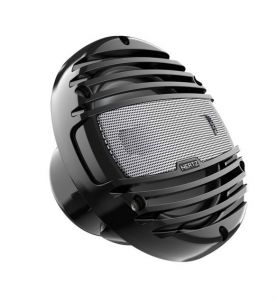

The HMX 6.5 hi-performance marine coaxial speakers, also available in the black option HMX 6.5-C, is optimised to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter feature an acoustic lens optimised for best off-axis dispersion and maximised SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection.

The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralise water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Features

• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
• 1.4" Neodymium magnet tweeter featuring a PEl material dome combined with faceplate and acoustic lens optimised for best off-axis dispersion and highest SPL.
• Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
• Long-throw 25mm (1") voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
• Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
• FEM optimised high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
• Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• Gold-plated corrosion resistant terminals.

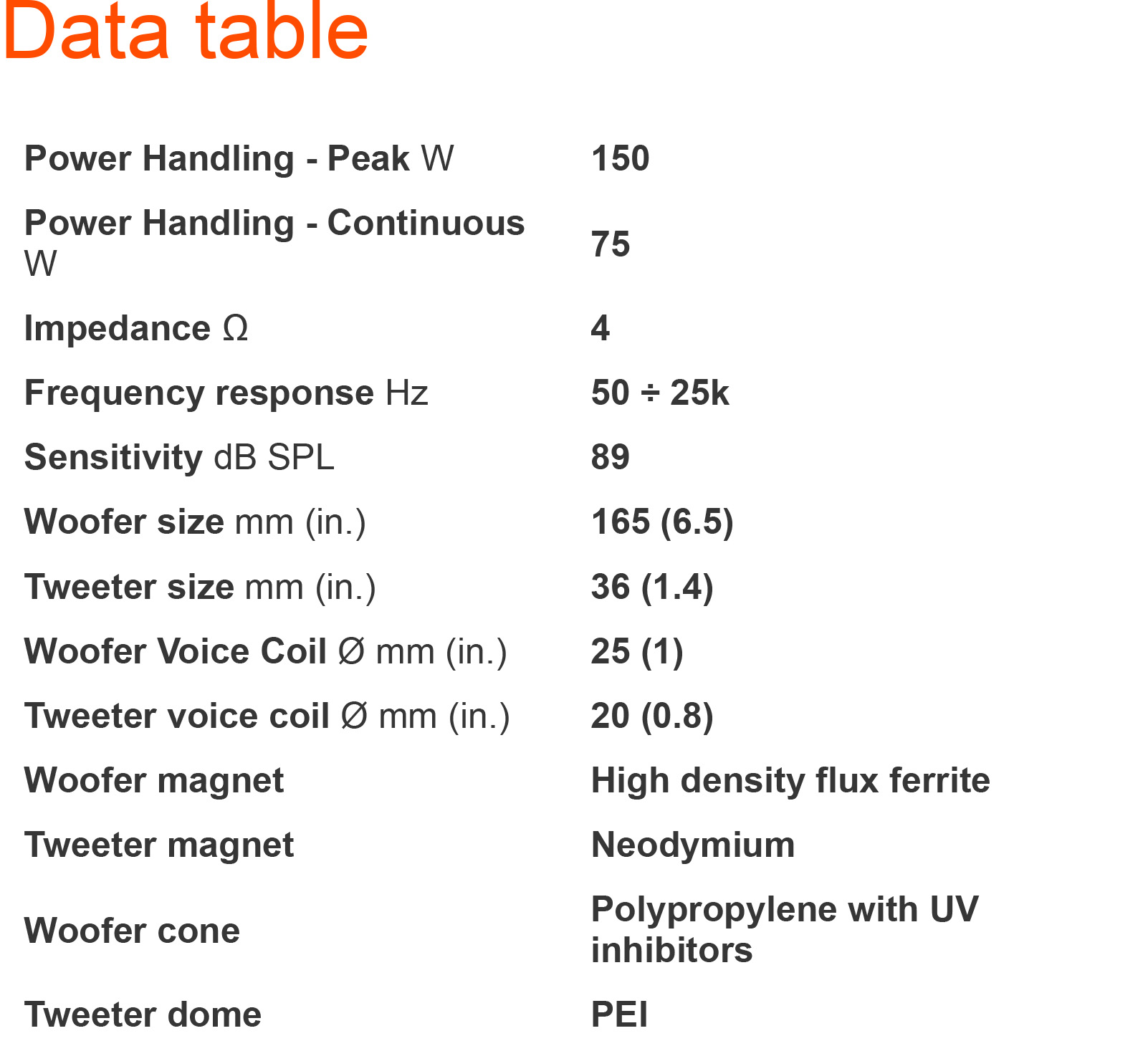

Data table

IP CERTIFICATION

UV RESISTANT

According to the severe ASTM-D4329 standards for UV resistance, all the

materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the

open sea.

WATER JET TESTED

The protection grade IP65 for speakers define all the Hertz Marine products as totally protected against water jets of different entities, making them highly

performant in the marine environment.

SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

Hertz HMX 6,5" Speaker Technical Data Sheet

HERTZ MARINE 2023 CATALOGUE
