Veratron VMH35-S Suzuki Only

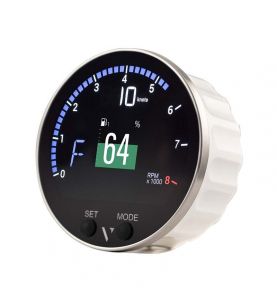

Veratron VMH35-S 3.5 Inch Multi Function Suzuki Engine Gauge

The first in its new VMH line of premium marine gauges, the Veratron VMH 35 was engineered for single inboard or outboard engine applications. The elegant black-glass design displays a wealth of critical boat system data, in a compact package that's perfect for dashboards, consoles and bulkheads on smaller vessels with limited space.

The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim and tachometer to other devices like chart plotters. This saves the need for an additional external converter. Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines.

An integrated GPS makes the VMH 35 the perfect standalone navigation solution. It integrates speed, compass and position into the engine data information. A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.

Enjoy the Plug and Play installation thanks to the dedicated harness equipped with matching Suzuki* connectors. A sleek, high-tech digital display for performance monitoring of your Suzuki*-powered boat.

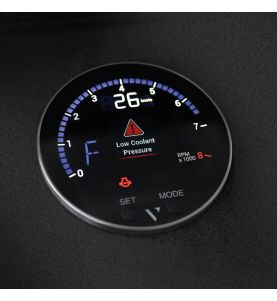

 The Digital sun-readable display with analog inputs, alarm inputs and the NMEA 2000® converter makes this the perfect stand-alone solution for your boat cockpit.

Highlights

• Works effortlessly with multiple Suzuki* engines

• Dedicated configurable inputs for engine sensors and alarms

• NMEA 2000® converter included

• Sunlight-readable display with mineral glass lens

• IPX7 front/rear protection class

• Intelligent battery sensor (IBS) compatible

Compatible with engines :

• DF40A-60A series
• DF70A-100B series
• DF100C-140B series
• DF150A-200A series
• DF250AP-300AP series
• DF300B-350A series

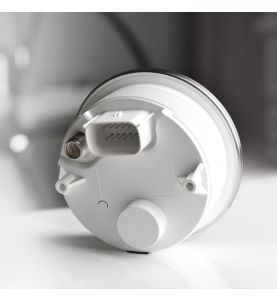

Dedicated harness included with plug-and-play Sumitomo connectors

Inputs, Alarms and Engine Hour Counter :

• Frequency input for Tachometer

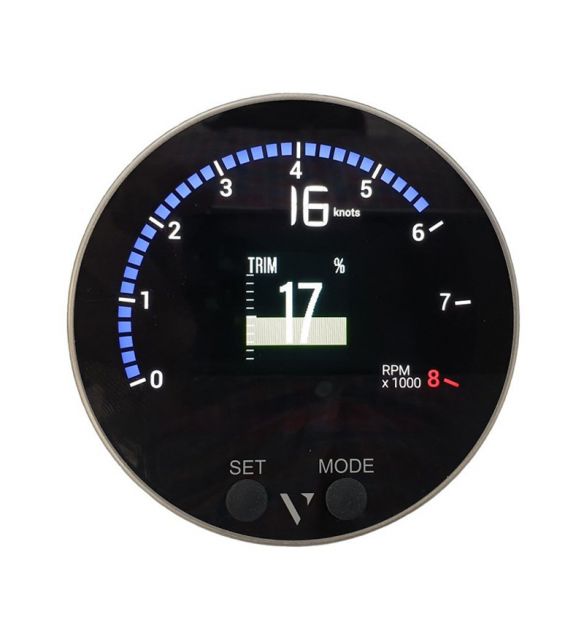

• PWM input for Trim sensor
• Resistive input for Fuel Level
• Dedicated input for analog alarms

Note : Temperature and Pressure data is displayed as alarms.

Note : Engine Hours will be counted internally by the display if the engine is running at 300RPM or more.
