Shakespeare 427-N VHF Antenna Mount Combo

Shakespeare 427N VHF Antenna and Shakespeare

4186 Nylon Antenna Mount Combo

The Shakespeare 427-N 1.5m fibreglass VHF antenna with 3db gain designed for small to medium boats, this antenna replaces the old RV120-P and comes with 6m cable and PL259 plug. V-Tronix brings you the best of the high-end features in a 1.5m (5ft) antenna with brass & copper elements and a smooth, high gloss, polyurethane finish that won't turn yellow in the sun.

This antenna delivers not only performance, but superb value.

Features

• Brass and copper elements
• Nylon ferrule with standard 1"-14 thread
  Includes 6m (20ft) RG-58 cable, and a PL-259 connector
• Suggested mount: Style 4186 Ratchet Mount
• Smooth, durable, high gloss finish
• One sectionFour-way ratchet design with handle, for deck or side mounting. Not for use with antennas longer than 8ft in self-supporting mode as this nullifies all warranties.

Specifications

• Band: VHF Marine Band
• Antenna Gain: 3dB
• Max. Input Power: 50 watts
• SWR: nominally 1. .5:1 at 156.8 MHz
• Bandwidth: 5 MHz within 2.0:1 VSWR
• Ferrule: Nylon
• Coax Supplied: 6m (20 ft) of RG-58
  Connector Supplied: PL-259, not installed
• Color/finish: White
  Polarity: Vertical
• Impedance: 50 Ohms
• DC Ground: Special - DC Grounded, but reads "open" on ohm meter
• Shakespeare
• Limited Warranty: 2 years

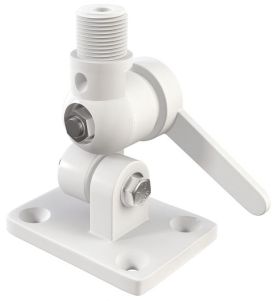

Ratchet Mount:

Four-way ratchet design with handle, for deck or side mounting. Not for use with antennas longer than 8ft in self-supporting mode as this nullifies all warranties.

• Bolt holes: 5/16" dia., 3" x 1½" on center
• Standard 1"-14 thread (male)
• Made from ultra tough nylon
