Furuno Fish Finder FCV1900

FISH FINDER Model FCV-1900

See underwater clearly and accurately with incredible high definition echoes With a transmission rate that has been increased by up to 1.4 times (200m range), the FCV-1900 ensures excellent target separation and clarity.

See underwater with incredible high definition echoes

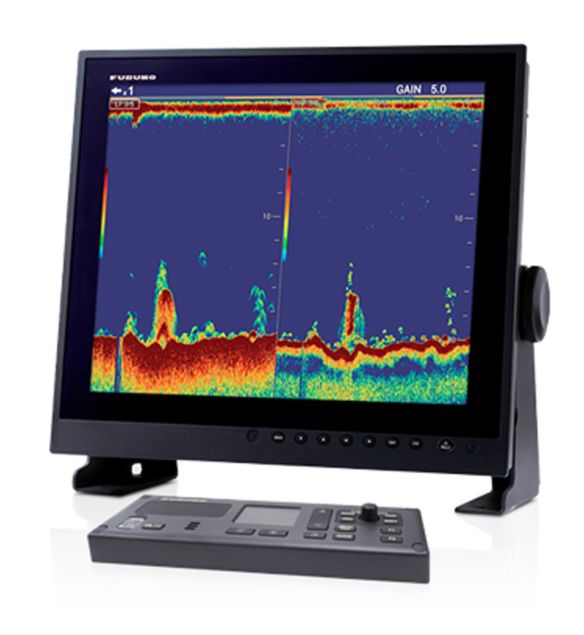

The FCV1900 is a powerful, dual-frequency Fish Finder designed for both commercial and sport fishing boats. It comes with an easily set 1kW, 2kW or 3kW transmitter. It features the Furuno Free Synthesiser (FFS) transceiver, which allows easy selection of a broad range of operating frequencies (15 kHz to 200 kHz). Retrofitting is made easy with FFS technology.

You can easily replace an older FCV1200 processor unit while utilising the same transducer for convenient installation. Plus we've made the operation of the FCV1900 simple and intuitive with the improved control unit. The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

More vivid details due to our increased transmission rate

With a transmission rate that has been increased by up to 1.4 times (200m range), the FCV1900 series ensures excellent target separation and clarity. You will be seeing individual targets and fish reefs like never before.

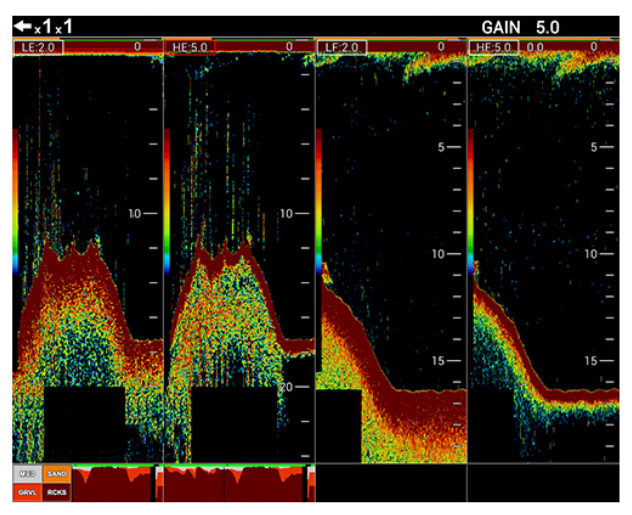

Display up to four different frequencies

Together in a compact and easy way by connecting a required network Fish Finder. Since there is no need to install additional displays, this system is especially useful for small vessels. When connected to the BBDS1 you gain the bottom discrimination function, which indicates whether the bottom is composed mainly of rocks, gravel, sand or mud. This information aids in identifying fish species and minimising bycatch, which can increase efficiency.

Did you see that?

Now you can with the scroll back function with the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

Instantly see what you've been missing

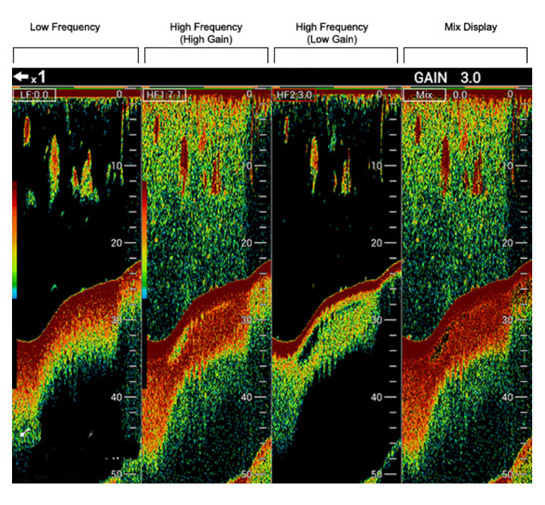

Low Frequency High Frequency

(High Gain) High Frequency

(Low Gain)

Mix Display

GAIN 3.0

Mix. 0.0

Use the Simultaneous Gain Setting to increase the visibility of the echo returns on the screen. Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

Enjoy outstanding shallow water performance

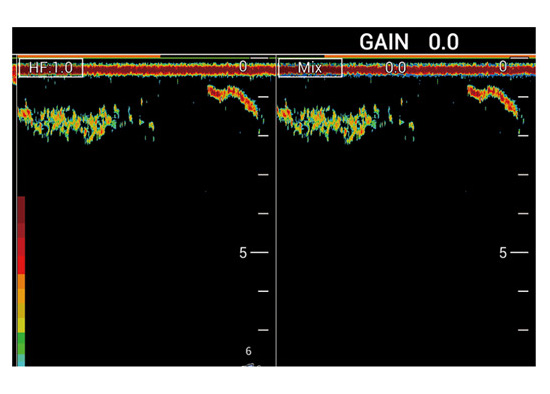

Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyse the water column from near to far.
