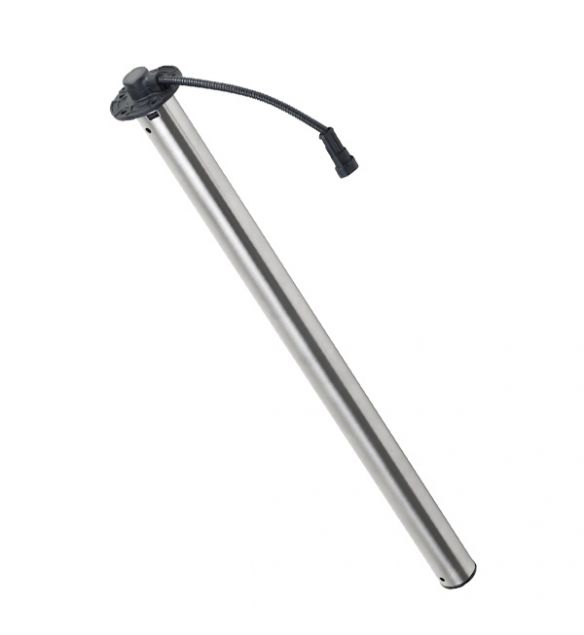

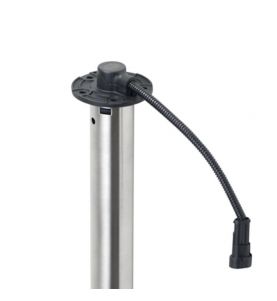

Veratron Deep-Pipe Fuel Level Sensor 240-33ohm

The stainless steel (SUS 201) Dip-Pipe Level Sensor is available in standard resistive ranges (240-33, 0-180, 90-4 Ohm) and ideal for usage in fuel and water tanks. The sensor can also be connected to a NMEA2000 network when coupled with Veratron's LinkUp B00042201 NMEA certified plugin gateway, its 38 mm diameter vertical tube contains a float inside which measures the level of liquid.

The sensor float is protected by a canister. This unique feature acts as a baffle to prevent tank slosh from disturbing the float in rolling seas resulting in improved sensing performance. Sensors are made in various lengths starting at 150 mm increasing to 1200 mm - please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Veratron Deep-Pipe Level Sensor 240-33OHM are available in a range of lengths.

Please ensure you select the required length when purchasing.
