Furuno M1815 36nm Radar


Delivery 5 to 7 Working Days

Fully Automatic Gain for Simplified Use

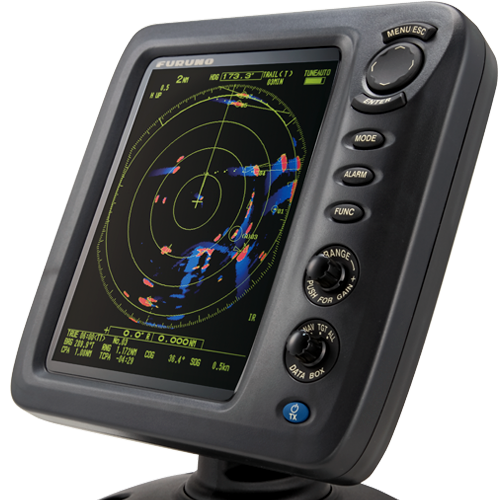

MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats.

The Radar has easy-to-use, intuitive controls, while maintaining the high performance

you expect from FURUNO products.

Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets

at short ranges by utilizing narrow pulses and dual IF bandwidths.

The waterproof display makes it ideal for exposed installations, such as fly bridges.
MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies

to ensure optimum performance in detecting and ranging targets of interest.



Peak Output Power 4 kW
Type 488 mm (19") radome
Frequency 9410 MHz ± 30 MHz
Beam Width (Horizontal) 5.2°
Beam Width (Vertical) 25°
Range Scales 0.0625 - 36 NM
Minimum Range 25 m
Antenna Rotation Speed 24 rpm
Weight 6.5 kg 14.3 lb


Display Unit 8.4" color LCD
Display Mode Head-up, Course-up*, North-up*, True view, True motion**
* Heading data required
** Heading data and position data required
Other Mode / Functions Fast Target Tracking™ (TT), AIS, Echo Trails
Weight Bracket mount: 2.2 kg 4.9 lb
Flush mount: 1.6 kg 3.5 lb


Temperature Antenna unit: -25°C to +55°C
Display unit: -15°C to +55°C
Waterproofing Antenna unit: IPX6
Display unit: IP56


Power Supply / Consumption Current 12-24 VDC, 3.2-1.6 A


AIS display

When connecting a FURUNO FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen.
The AIS improves safety during travel by sharing the status and position of your vessel
with other AIS-equipped vessels nearby.
You can easily read detailed information about other AIS equipped vessels nearby, such as speed and heading.
