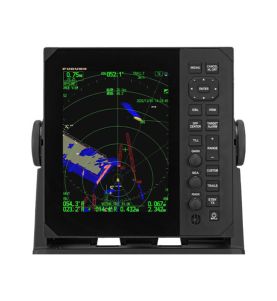

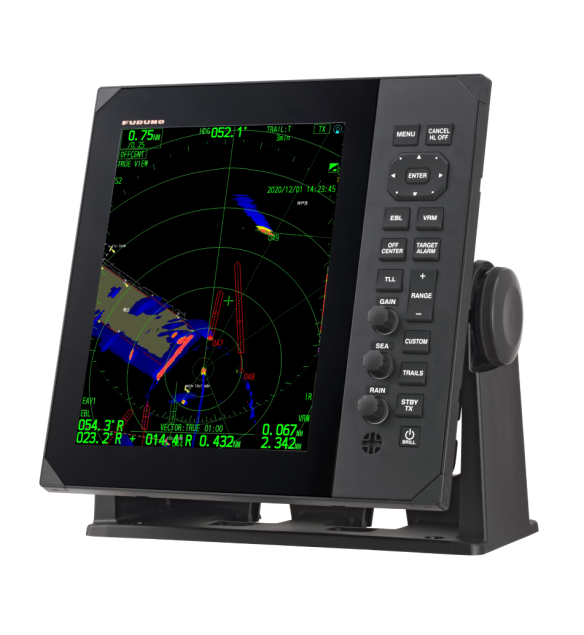

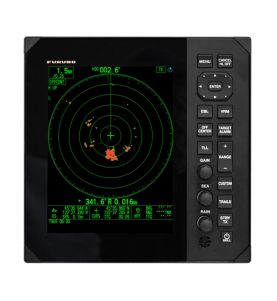

Furuno FR 10 10.4 inch Radar Display

Radar Options For Any Vessel

The FR10 Radar features a 10.4” Color LCD and key panels for simple operation. The display is designed for use with the Furuno DRS X-Class or NXT Solid-State Radar series, offering unmatched performance and an expanded selection of arrays, from compact domes to large open arrays in both solid-state and magnetron configurations.

Expanded I/O capability includes 1 LAN port for connection with the DRS Radar Sensor of your choice, 3 NMEA0183 ports, 1 NMEA2000 port, 1 USB port for connection of a mouse or USB flash drive, and an HDMI port for video output to an external monitor.

Risk Visualiser and DRS Radar Features

Risk Visualiser is a unique feature that allows the navigator to see areas with a high risk of collision as well as displaying the time to reach those areas, with many options for customisation. This technology shows potential collision areas based on the current position and movement of all surrounding vessels, providing a quick and intuitive overview of the situation around your ship. Color-coded alerts help you assess the level of danger and plan your next move, contributing to the continuous improvement of safety at sea.

DRS Radars include features such as Fast Target Tracking, immediately displaying a vector line indicating the target’s speed and heading. When connected to an NXT Radar, solid-state features are unlocked, such as RezBoost Beam Sharpening and Target Analyser, instantly identifying hazardous targets.

Custom AIS presentation, flexible Anti-Clutter controls, and a Stern Up presentation are all available.

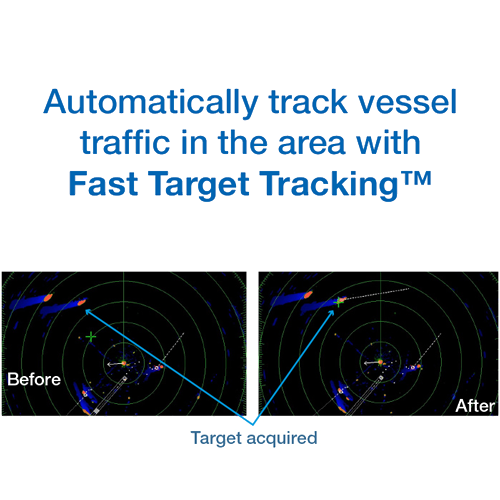

Fast Target Tracking™

Fast Target Tracking™ instantly displays a vector indicating the target's speed and heading. Targets are automatically tracked, making it possible to immediately calculate and display a trajectory and velocity vector. Target vectors greatly increase situational awareness and overall safety on your vessel.

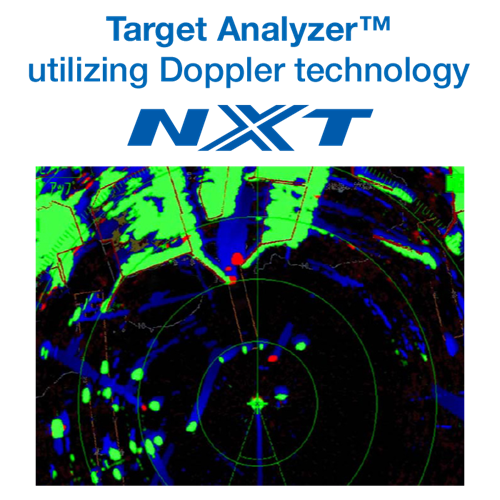

Target Analyzer™

When paired with Furuno NXT Doppler Radars, Furuno's exclusive Target Analyser™ function is unlocked, where targets approaching your vessel automatically change colour to increase safety and improve situational awareness. Green targets are stationary or moving away from you, while red targets are moving towards your vessel. Working independently of vessel speed, target echoes dynamically change colours as targets approach or move away.

Take a First Look at the FR10 and FR12 Radar Displays!

Take a look at these new Radar displays and walk through all of the new features and options!

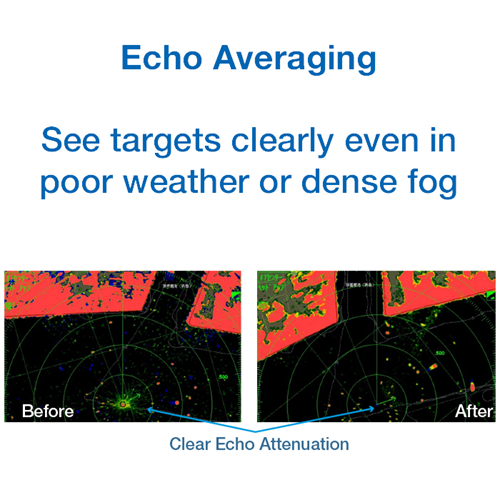

Echo Averaging

The Echo Average feature attenuates irregular echoes, such as reflections from the sea surface and precipitation, while stabilising echoes from fishing gear and other vessels. Echo Averaging makes it easy to see what you want to see in any conditions, even adverse weather, such as high waves, heavy rain, or dense fog.
