Lowrance Eagle 4x Fish Finder

Lowrance Eagle 4x Sonar Fishfinder 4" Display Bullet Skimmer Transducer

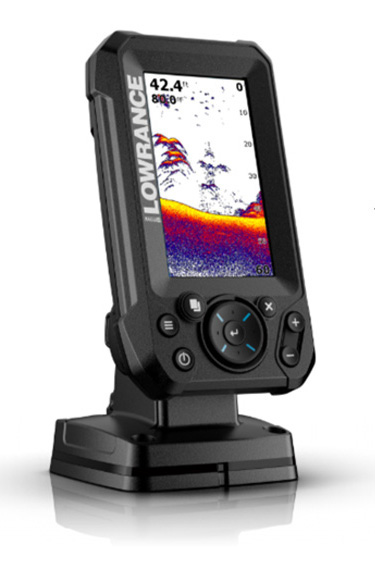

The Lowrance Eagle 4x with Bullet Skimmer Transducer is a compact and user-friendly fish finder particularly suited for kayaks and small fishing boats with limited space.

This 4-inch model benefits from the following features:

• Portrait-Oriented 4-inch Display: Ideal for kayaks and small fishing boats where space is limited.
• IPS Screen: Provides improved resolution, clarity, and visibility from all angles, even in direct sunlight with polarised sunglasses.
• Wide-Angle Sonar: Delivers more coverage of the water column compared to most standalone fish finders, allowing you to cover more water in less time
• Continuous Right to Left Scroll: Makes it easy to interpret sonar readings and spot fish as the screen scrolls continuously
• Autotuning Sonar: automatically adjusts sonar settings for optimal performance, eliminating the need for manual adjustments and ensuring the best possible settings from the start
• Connector System: Features an improved twist-locking connector for quick and easy installation and removal (compared to older models)

DESIGNED FOR FISHING

AUTOTUNING SONAR

Simple autotuning sonar gives you the optimal settings from the start so you don't have to spend time trying to find them yourself.

BULLET SKIMMER TRANSDUCER

Cover more water in less time with wide-angle sonar,delivering double the coverage of most standalone fishfinders.

Key Features

• IPS screen, viewable from all angles, even in polarized glasses.
• V New reliable twist-lock connector system for easy installation in any boat or kayak.
• Portrait orientation.
• True scroll sonar.

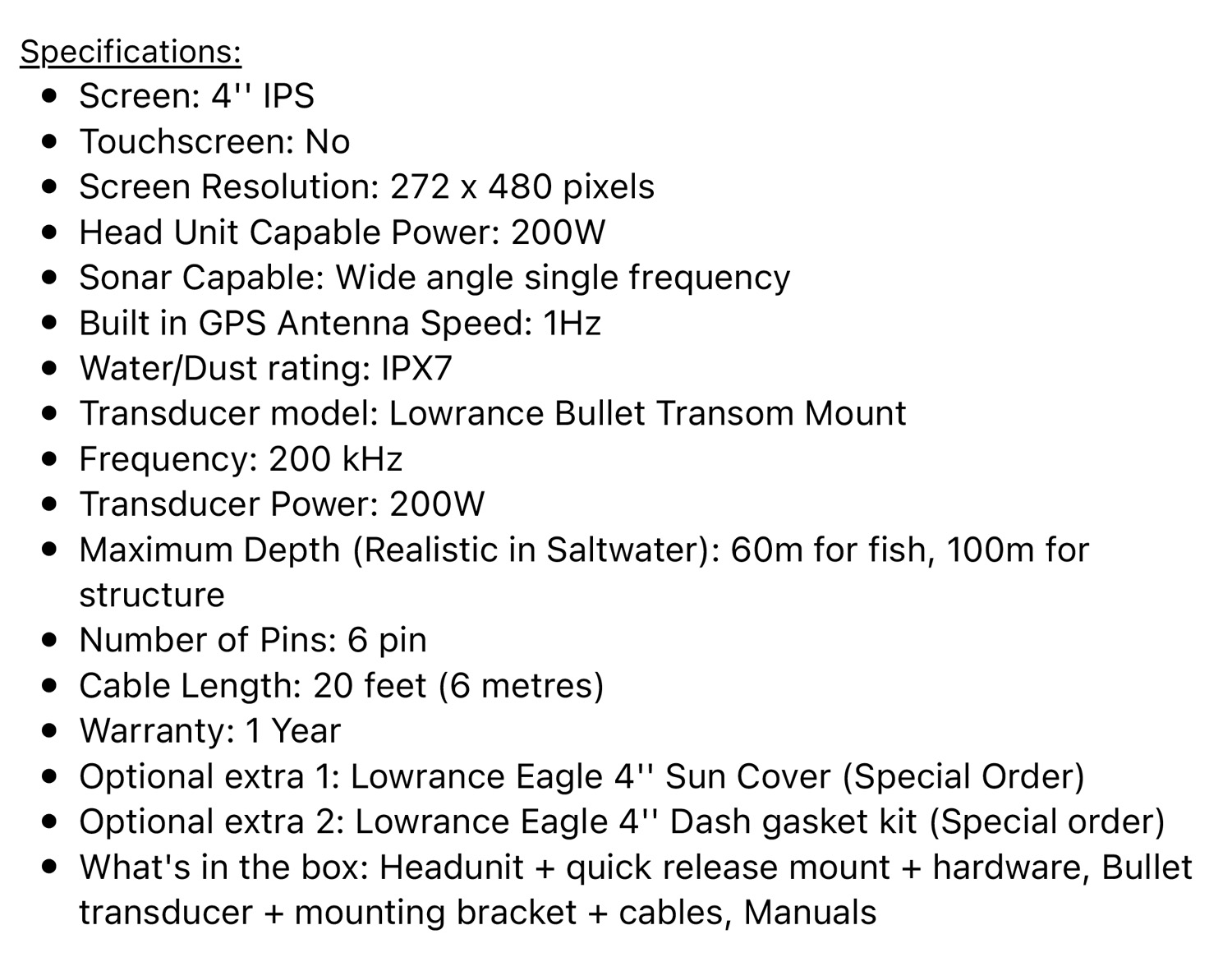

Specifications:

• Screen: 4"' IPS
• Touchscreen: No
• Screen Resolution: 272 × 480 pixels
• Head Unit Capable Power: 200W
• Sonar Capable: Wide angle single frequency
• Built in GPS Antenna Speed: 1Hz
• Water/Dust rating: IPX7
• Transducer model: Lowrance Bullet Transom Mount
• Frequency: 200 kHz
• Transducer Power: 200W
• Maximum Depth (Realistic in Saltwater): 60m for fish, 100m for structure
• Number of Pins: 6 pin
• Cable Length: 20 feet (6 metres)
• Warranty: 1 Year
• Optional extra 1: Lowrance Eagle 4" Sun Cover (Special Order)
• Optional extra 2: Lowrance Eagle 4"' Dash gasket kit (Special order)
• What's in the box: Headunit + quick release mount + hardware, Bullet transducer + mounting bracket + cables, Manuals

Lowrance 4x operators manual
