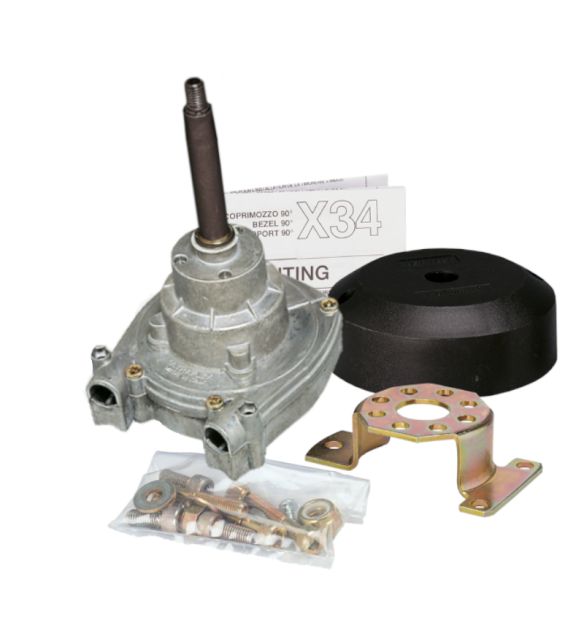

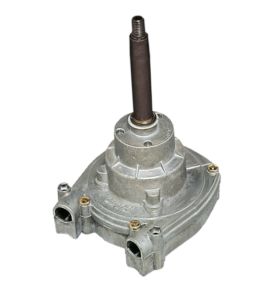

Ultraflex T73 No Feed Back Helm with X34 Black 90 Degree Mounting Bezel

Ultraflex no feed back steering helms eliminates torque feed back from your outboard motor whilst providing a direct smooth feel to your steering system. Designed to allow the helm shaft to lock until turned by the driver, maintaining the boat direction & neutralizing any torque feedback loads on the steering cable.

The Ultraflex No Feed Back steering helm is designed for mechanical cable steering systems makes driving a boat safer & easier.

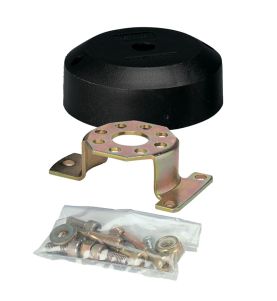

Supplied With an Ultraflex Black X34 90 Degree Mounting Bezel Kit

Note: Not to be used on boats equipped with engines that exceed the max hp rating. Boats faster than 80 kph or 43knots for this application the twin cable steering system T74NRFC is recommended and uses the M66 Ultraflex steering cable.

Features:

• Easy and safe steering, fast connect and simple installation.
• Compact rotary helm unit, particularly suitable where clearance is limited.
• Ideal for outboards and surfacing propellers.
• Made exclusively with corrosion resistant materials.
• Suitable for engines: 25hp - 225hp
• Features a standard 3/4" tapered shaft.
• Steering wheel turns approximately 3.8x lock to lock.
• Max. allowable steering wheel dia: 406mm
• Compact for mounting with minimum feedback.
• For boats exceeding 80 kph or 43knots, the twin T74NRFC cable steering system is recommended.
• Uses M66 cable, M90 cable or SSC62 style cable.
• Exceeds both EN 28848 and ABYC P17 safety standards.
• Optional 90° or 20° mounting bezel sold separately
