Victron Dual Terminal Stud M8-linked set
R380.01

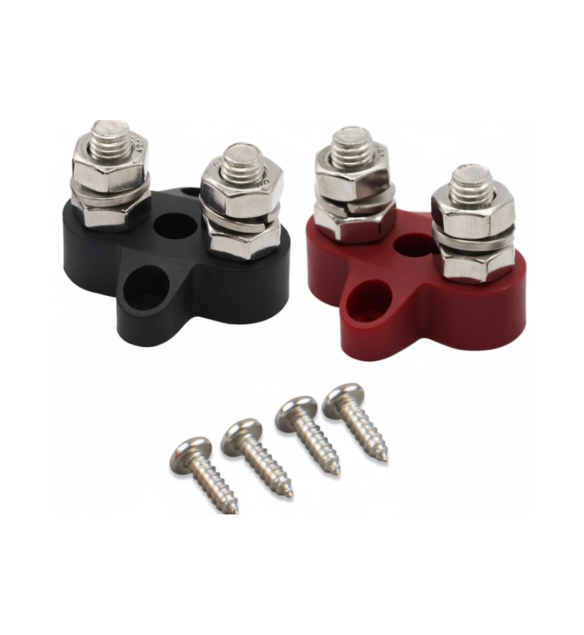

Victron Dual Terminal Stud M8- Linked Set (1 Red / 1 Black)
| Dual terminal stud M8 (5/16") | |
| Max. current | 150 A |
|---|---|
| Max. Voltage | 70 VDC |
| Terminal diameter | M8 (5/16 inch) |
| Terminal height | 17 mm / 0.67 inch |
| Terminal material | Stainless steel |
| Hex nut material | Stainless steel |
| Recommended torque | 10 N·m / 90 lbf·inch |
| Busbar strip material | Tin-plated copper (1.0 x 13 mm) |
| Base material | Glass fiber reinforced nylon |
| Weight | 70 g |
| Dimensions (hxwxd) | 45 x 43 x 32 mm 1.8 x 1.7 x 1.3 inch |
VEVBB413020010
