Scanstrut Flip Pro USB-A & C Charging Port

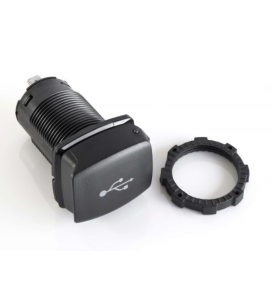

Scanstrut Flip Pro USB-A & USB-C Charging Port

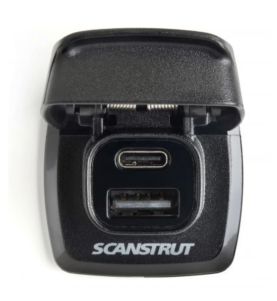

Flip Pro is designed for use with either a 12V or 24V input and features 1x USB-A and 1x USB-C charging port. This provides the optimum choice of connection for any device and the fastest charging for your device.

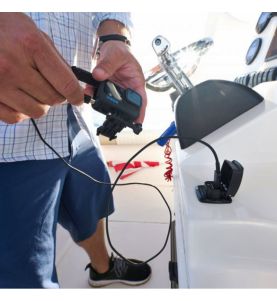

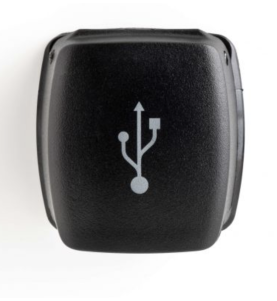

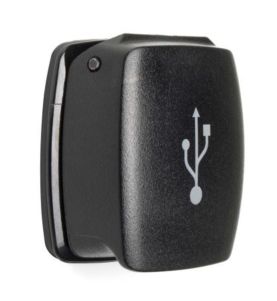

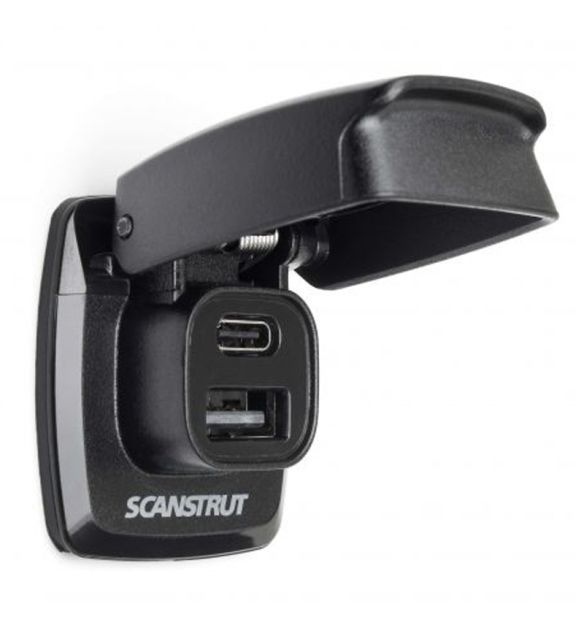

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.

Featuring a super-compact footprint, Flip Pro is constructed from premium, marine-grade materials and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops via the USB-C port. It’s also 2x faster for charging large tablets and is designed to effortlessly charge both an iPad Pro & iPhone at the same time.

The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops.

Key Features

• Universal fit for any USB-A or USB-C connectors
• Fast charge (60W max) up to 2 devices at a time
• Easy install using standard USB mounting hole - 29mm (1 1/8”)
• IPX4 waterproof with the cover closed
• Internal anti-corrosion protective coating
• UV resistant
• 316 stainless hinge and spring

Electrical Information

Scanstrut Flip Pro Installation Instructions

Scanstrut Flip Pro Technical Drawings
