Victron Orion TR DC-DC Converter 24V to 24V – Isolated

Victron Energy


SKU: VEORI242428110

Brand: Victron Energy

Victron Orion TR DC-DC Converter 24V to 24V – Isolated

Available in 12 and 17 amps. Please select amperage required above when purchasing.

Remote on/off

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input fuse

On 12V and 24V input models only.

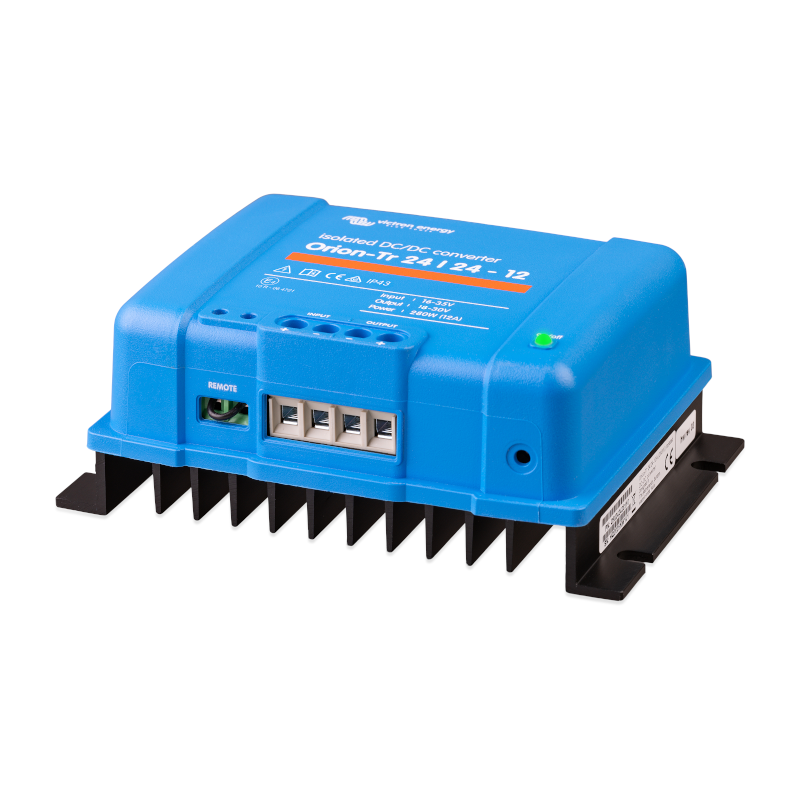

Orion-Tr 24/24-12 (300 W)
Input voltage range	16-35 V
Under voltage shut down	14 V
Under voltage restart	15 V
Nominal output voltage	24.2 V
Output voltage adjust range	18-30 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current (40°C)	12 A
Max. output current (10 s)	15 A
Short circuit output current	30 A
Cont. output power at 25°C	320 W
Cont. output power at 40°C	280 W
Efficiency	89 %
No load input current	< 80 mA
Weight	1,3 kg (3 lb)
Dimensions hxwxd	130 x 186 x 70 mm
Max cable cross-section	16 mm² AWG6

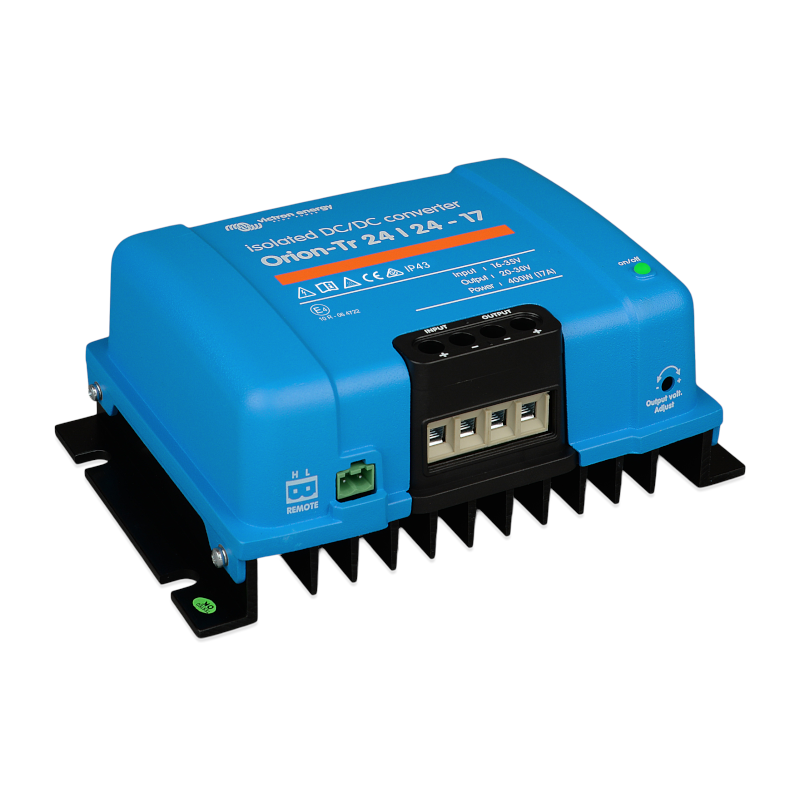

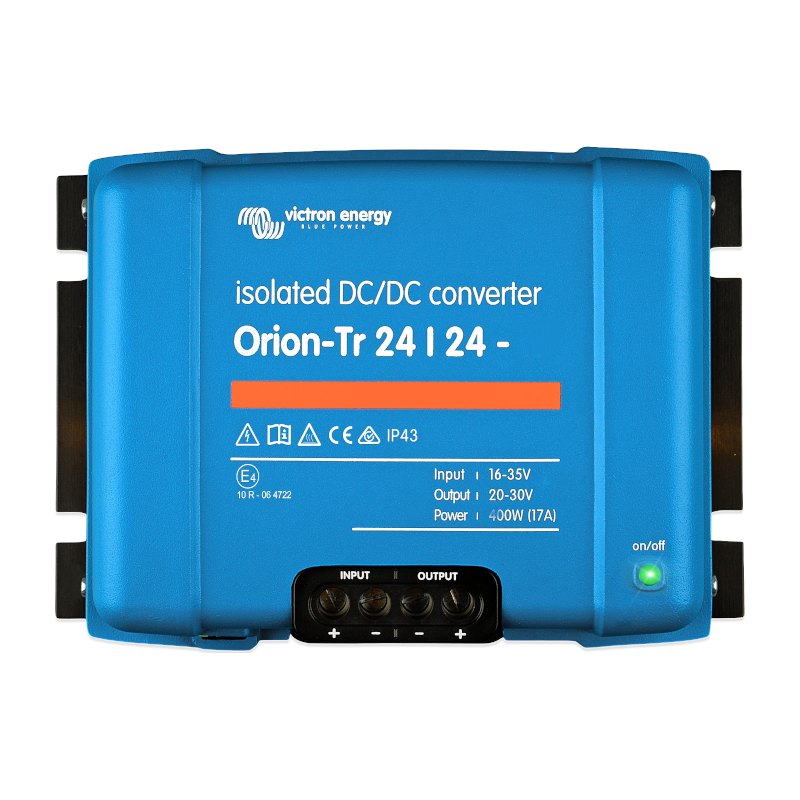

Orion-Tr 24/24-17 (400 W)
Input voltage range	16-35 V
Under voltage shut down	14 V
Under voltage restart	15 V
Nominal output voltage	24.2 V
Output voltage adjust range	18-30 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current (40°C)	17 A
Max. output current (10 s)	25 A
Short circuit output current	40 A
Cont. output power at 25°C	480 W
Cont. output power at 40°C	400 W
Efficiency	89 %
No load input current	< 100 mA
Weight	1,8 kg (4 lb)
Dimensions hxwxd	130 x 186 x 80 mm
Max cable cross-section	16 mm² AWG6
