Victron Orion Tr DC-DC Converter 24V to 12V – Non Isolated
Price range: R640,00 through R720,00
Description
Attachment
Description

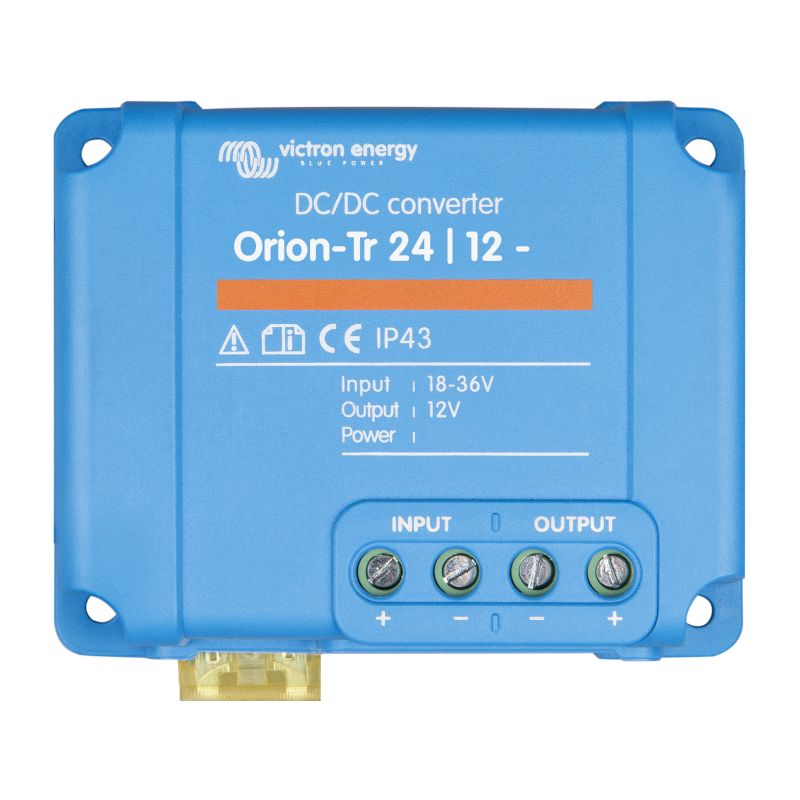

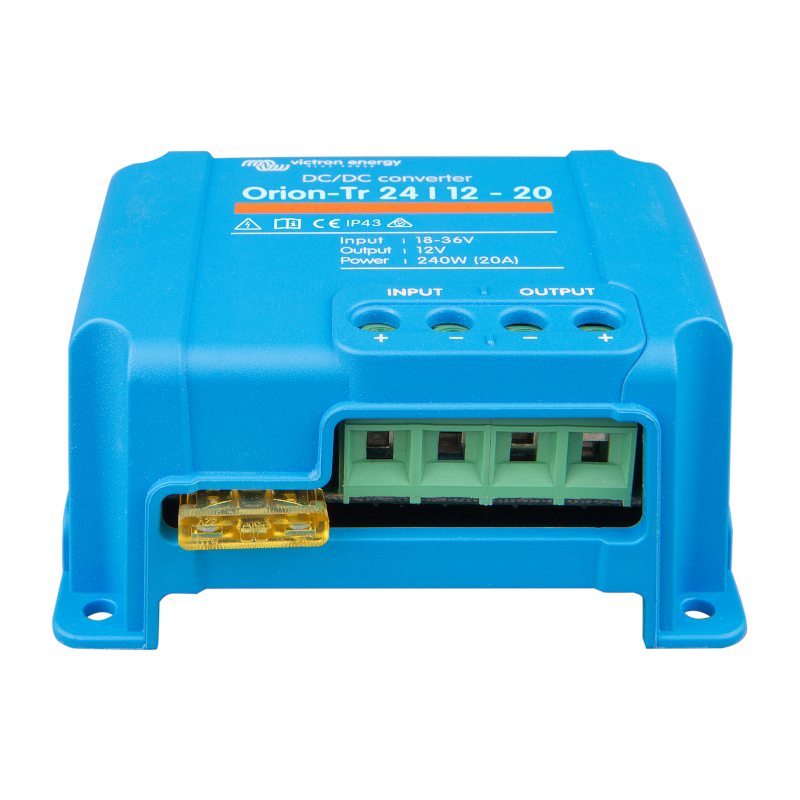

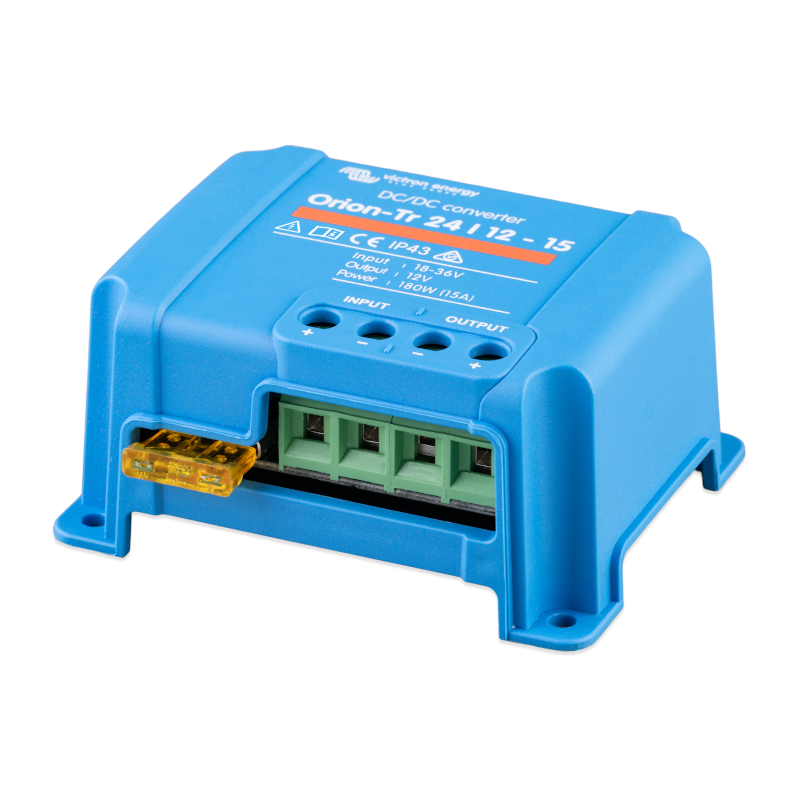

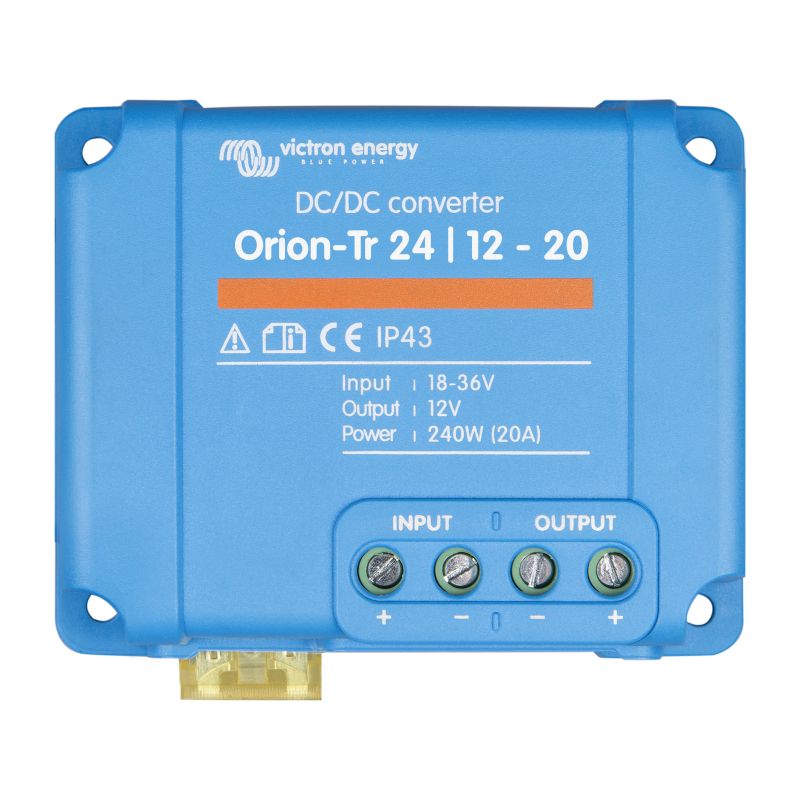

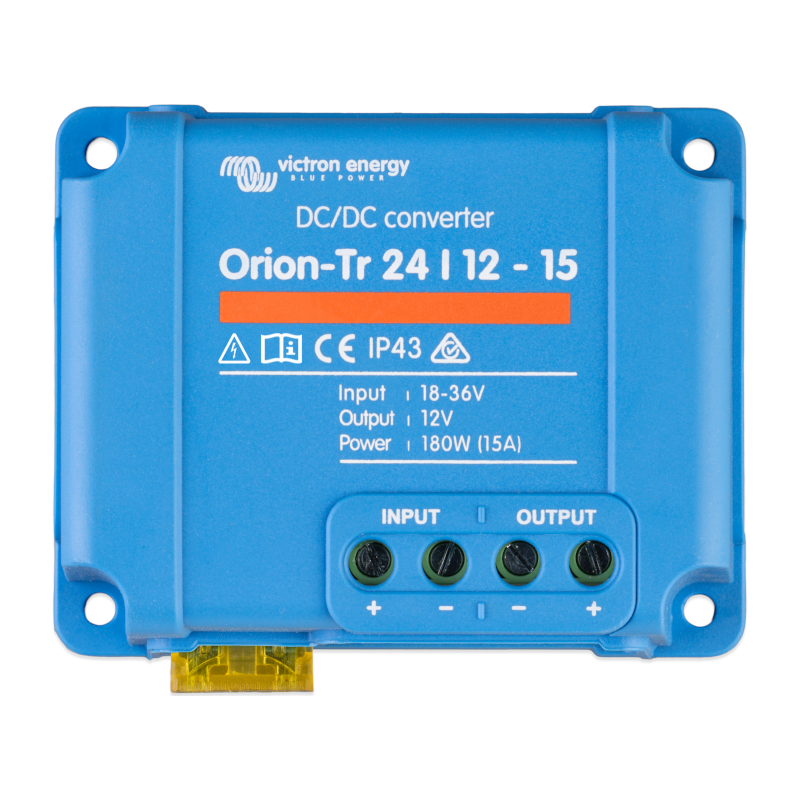

Victron Orion Tr DC-DC Converter 24V to 12V – Non Isolated
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
| Non isolated converters | Orion-Tr 24/12-15 | Orion-Tr 24/12-20 |
|---|---|---|
| Input voltage range | 18-35V | 18-35V |
| Output voltage | 12.5V | 12.5V |
| Efficiency | 97% | 97% |
| Continuous output current | 15A | 20A |
| Max. Output current | 20A | 25A |
| Galvanic isolation | no | no |
| Off load current | < 35mA | < 35mA |
| Operating temperature range
(derate 3% per °C above 40°C) |
-20 to +55°C | -20 to +55°C |
| DC connection | Screw terminals | Screw terminals |
| Maximum cable cross-section | 6 mm² AWG10 | 6 mm² AWG10 |
| Weight (kg) | 0,25 | 0,25 |
| Dimensions hxwxd in mm | 73x94x45 | 73x94x45 |
