Furuno DFF-3D multi-beam sounder

R42,550.00

Quantity

Delivery 5 to 7 Working Days

Description
Product Details

Revolutionary 3D Multibeam Sonar for deep and wide water columns

You may think you’ve seen 3D Multibeam Sonar in action, but many of those images begin disappearing as you approach 200 feet. Furuno’s DFF3D takes 3D Fish Finding to new depths. We’re talking depths of over 980 feet, with Side Scanning over 650 feet. See fish and bottom structure as you’ve never seen them before, at depths previously unfathomable. Now you can visibly see fish schools and the underwater landscape at great depths in amazing detail. The DFF3D turns your NavNet TZtouch, TZtouch2, or TZtouch3 MFD into a Multibeam Sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time.

The compact and fully featured transducer Customize the display according to your needs

Thru-hull mount transducer Ｂ54 (Bronze type) and SS54 (Stainless type) Transom mount transducer TM54

The compact transducer allows easy installation.

The built-in motion sensor (standard supply) stabilises the display to give clear and stable images even under rough sea conditions.

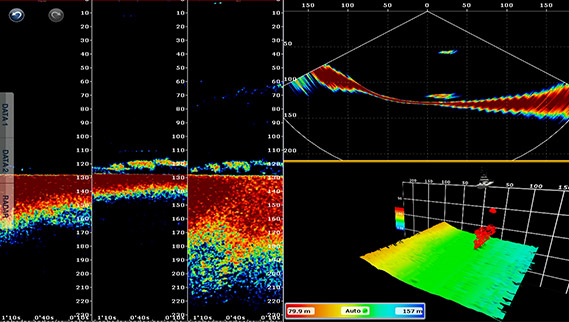

Customize the display according to your needs

Depending on the situation and preference, a combination of screen modes can be displayed.

Furuno DFF-3D multi-beam sounder

TZ Professional v3 with DFF-3D

When paired with TZ (TIMEZERO) Professional software and the optional PBG module, the DFF-3D can generate up to 50 depth points per second to quickly create a highly accurate Personal Bathymetric Generated (PBG) database.

The following screenshots show how the PBG database is dynamically created with the DFF-3D, in comparison with conventional Fish Finder models.

Further details on TIMEZERO website.
https://mytimezero.com/tz-professional/dff3d-module

TIMEZERO

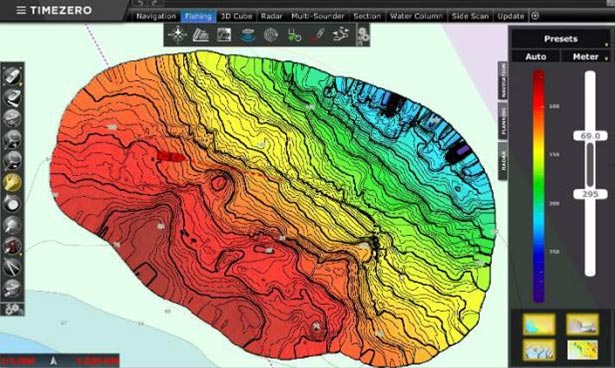

The wide coverage of the DFF-3D beams helps draw the PBG map much faster (50 points per second) than any conventional Fish Finder.

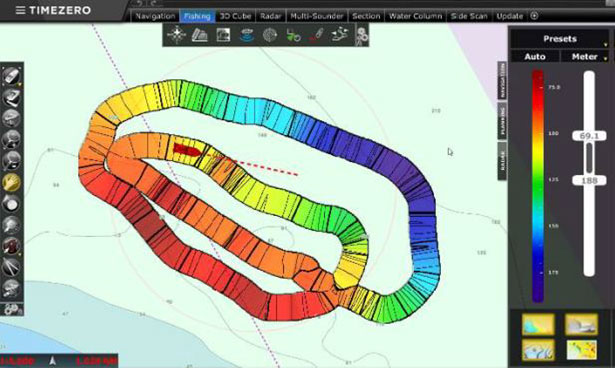

With conventional Fish Finders, the recorded area in the PBG database is limited to 1 point per second due to narrower scanning beams.

Note:

SATELLITE COMPASS required as the primary source of position, heading, and motion (roll/pitch/heave) data.
The DFF-3D can detect and generate a PBG database down to 200 m. When the depth is deeper than 200 m, the PBG source can be switched from the DFF-3D (multi-beam) to a Fish Finder (single beam).

This product is compatible with NavNet TZtouch 3, NavNet TZtouch 2 and NavNet TZtouch or Windows OS with TZ professional software**.
For more information about our NavNet products, please click the link below.

NavNet.com
