Ultraflex Link Arm for UC128-OBF/1 and UC128P-OBF/1

Ultraflex Link Arm for UC128-OBF/1 and UC128P-OBF/1

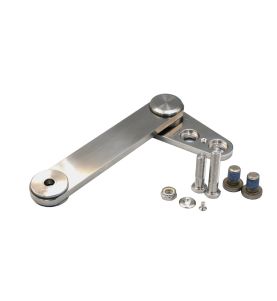

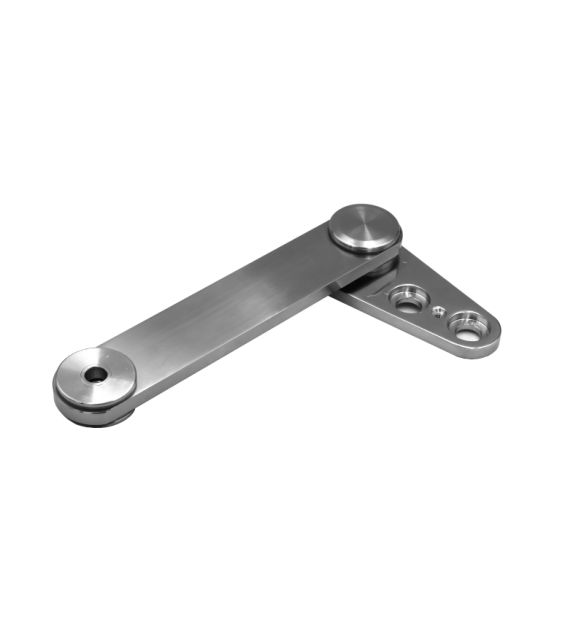

LA1 Link arm kit for UC128-OBF standard cylinder (Starboard) and LA1P link arm kit for UC128P-OBF Port cylinder, used to connect the steering cylinder to an outboard engine

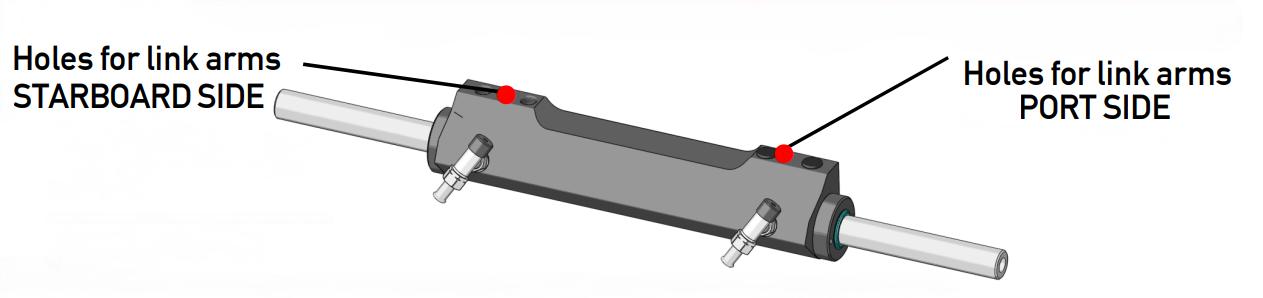

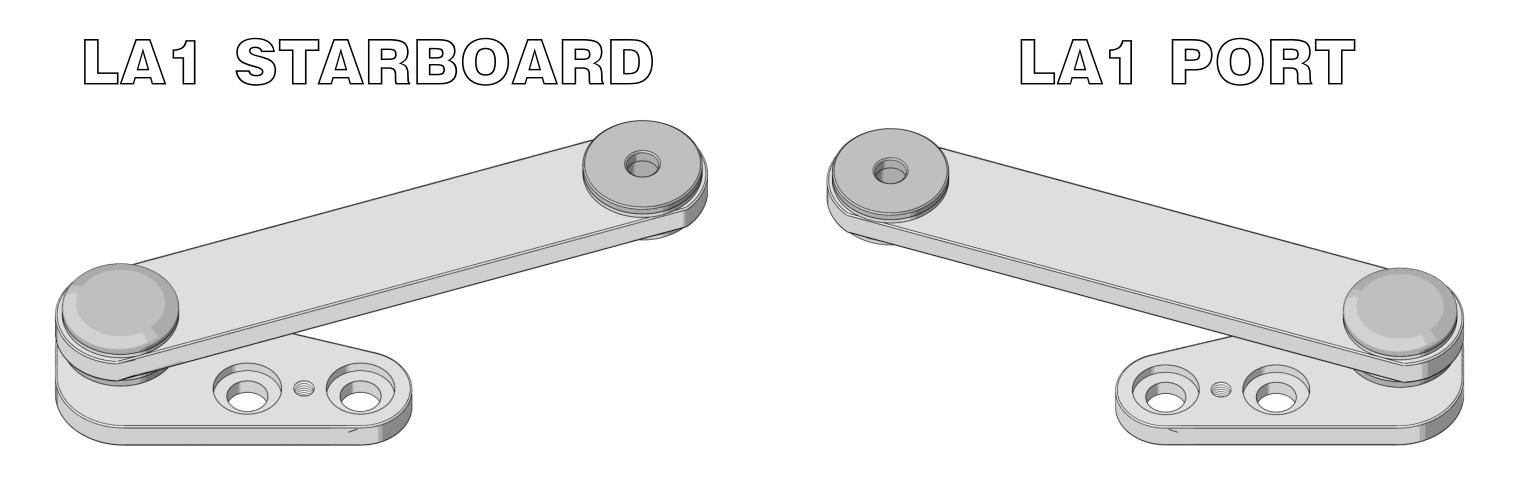

Please select required orientation when ordering

Note: LA1 and LA1P link arm kits are recommended for use on the first installation only and not as a retrofit. Installation has to be made by qualified technicians only.

Installation Advice :

The bolt identified with the reference 73584U is the connection between the cylinder's link arm and the engines tiller arm that must be used with the following engines:

• SUZUKI 100-115-140 (2008 - to date)

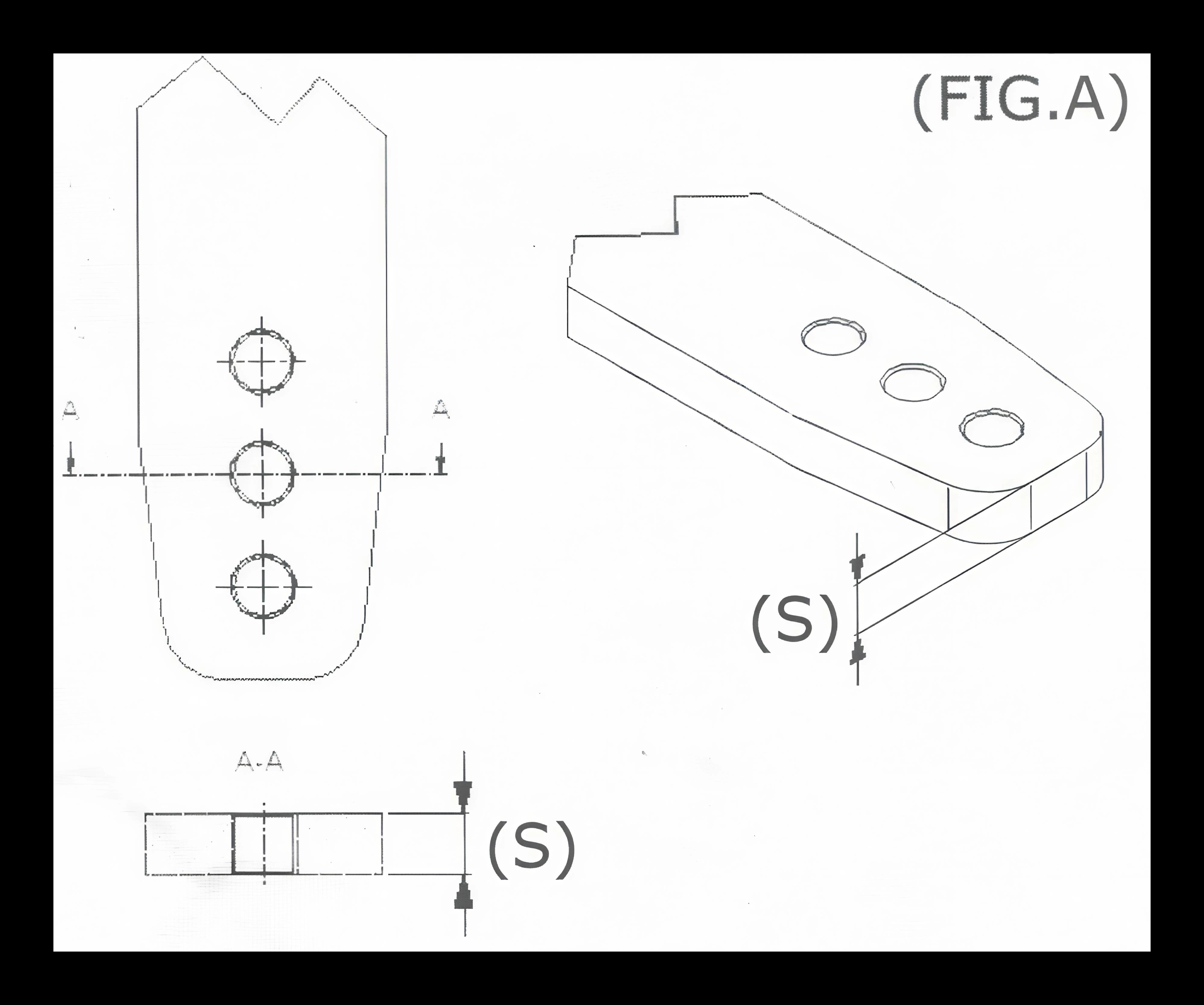

• Engines with the tiller arm shaped like in Fig.A and thickness (S) between 10mm and 22mm

For other engines with tiller arm shaped like in Fig.A and a max thickness (S) max of 10mm, please use the standard bolt (shorter than reference 73584U)

Ultraflex Link Arm installation instructions manual
