- Out-of-Stock
![]()

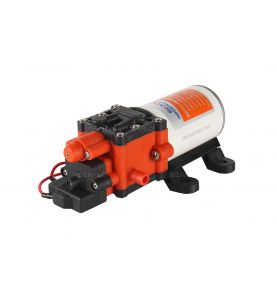

The 55-Series Fresh water Diaphragm pump is compact and designed for a wide range of applications and provides a high volume flow rate with reduced pump cycling. The pump is self-priming and can be run dry without harm and has an internal bypass feature which reduces pump cycling and features a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened or closed.
| 51-Series Seaflo Pump | |
|---|---|
| SKU | SFDP1-040-013-060-51 |
| Voltage | 12V |
| Open Flow (LPM) | 15.1 |
| Max Draw | 14A |
| PSI/Bar | 60/4.2 |


| Pump Specifications | |
|---|---|
| Type |
5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C (140° F) |
| Priming Capabilities | 1.8m suction lift |
| Re-start Pressure |
Shut-on Pressure 20 : PSI Shut-off Pressure 60 : PSI |
| Inlet/Outlet Ports | 1/2" (12,7mm) hose barb |
| Weight | 2.8 kg |
| Motor Specifications | |
|---|---|
| Leads | 14 AWG, 13" (33cm) long with 2-Pin connector/leads |
| Duty Cycle | Continuous |
| Max. Draw | 17 A |
| Fuse Amps | 25.5 A |
