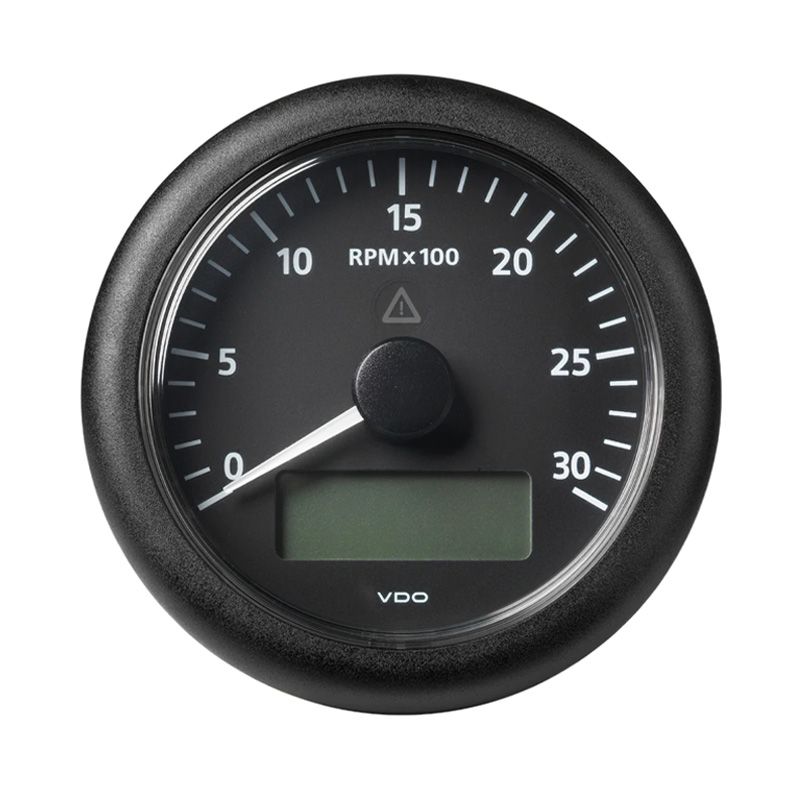

Veratron Viewline 85mm Tachometer 3000RPM

VERATRON Engine Revolution, Engine Hours, Voltage and Clock

The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus). One LED warning light is integrated as a standard.

• Current consumption < 175 mA, with warning light (LED)
• Output for acoustic alert (option)
• Various sensor inputs
• LC display size 37 mm x 11 mm
• Individually programmable display e. g., for clock, trip, odometer, etc. via externally switchable button or PC software (ViewLine programming tool)
• Reverse polarity protection

ViewLine 85 mm Gauges

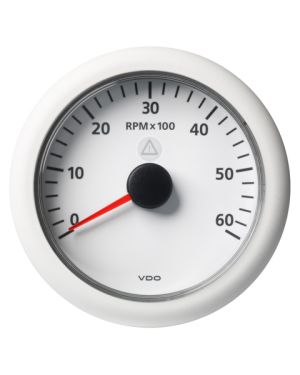

Veratron Marine ViewLine 85 mm Gauges are available in black or white dial versions, which are always completed with round bezel in identical colour. ViewLine accessories bezel concept offers true design flexibility in the layout of instrument panels, the three attractive designs in black, white or chrome are suitable for every machinery instrument panel or special vehicle cockpit.

Specifications:

• 8 and 14 pole Tyco/Hirschmann bush housing
• Operating voltage 8-32 V
• Accuracy +/-2.5 % of full scale reading
• < 175 mA current consumption with an LED warning light as standard

• Anti-fog double lens
• Protection rating front IP67, rear IP52
• 85 mm installation diameter
• 50 mm installation depth
• Operating temperature range -20 °C/+70°C

Aftermarket package:

Gauge, Bezel, Rubber Seal, Spinlock, Connectior cable, Installation Instructions, Safety Instructions

Number of pulses programmable via dip switch or PC software (ViewLine programming tool)
