Actisense USB to Serial Gateway USG 2

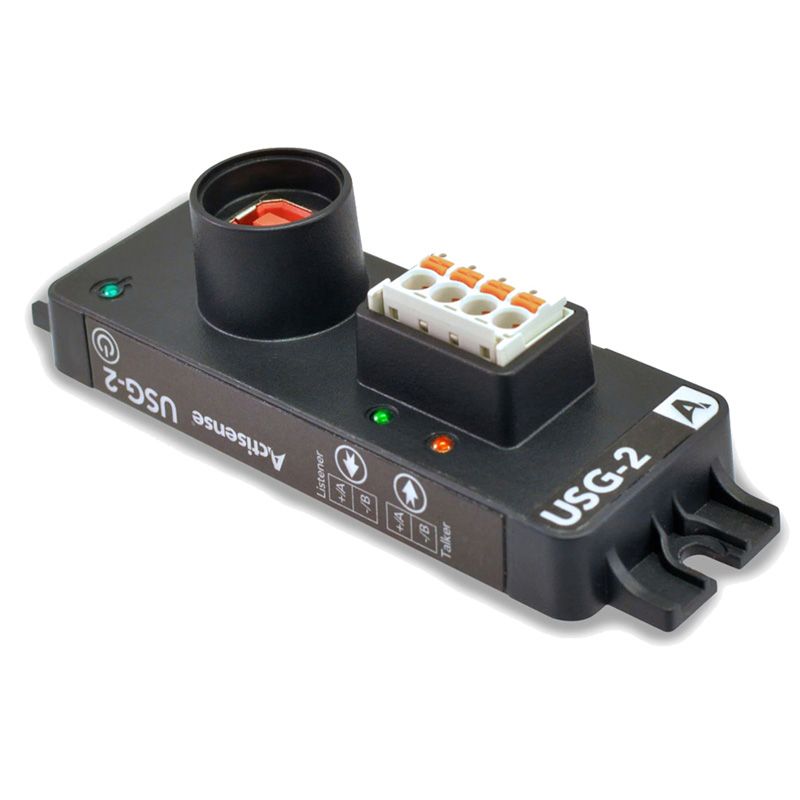

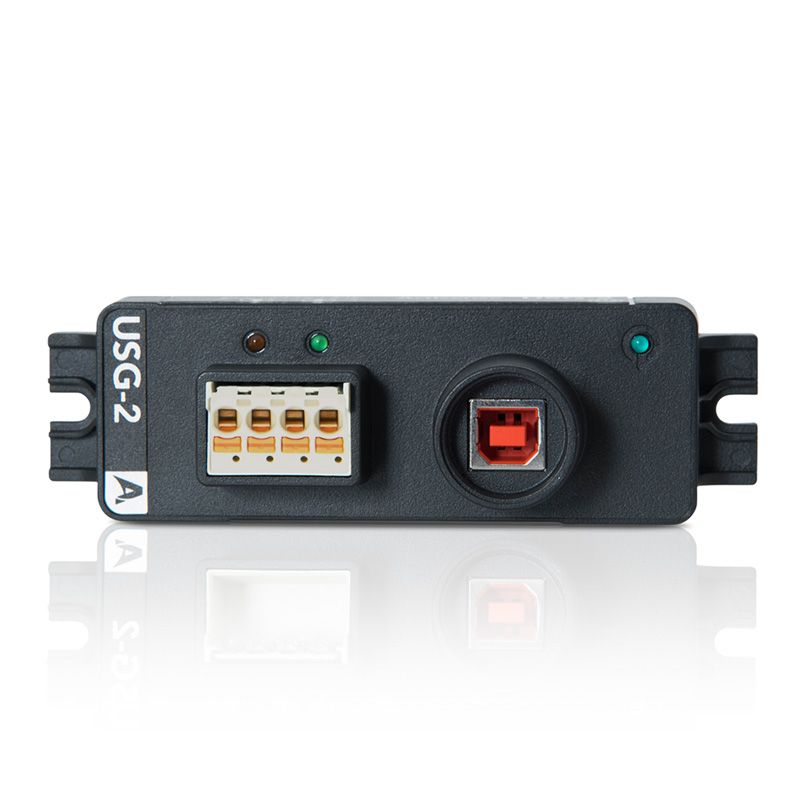

USG-2 USB to Serial Gateway

The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network. The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.

FEATURES

• NMEA 0183, RS422 & RS232 compatible
• ISO-Drive ™ technology
• Pluggable screwless connector with locking latch & strain relief
• Encapsulated electronics
• High retention USB socket
• Diagnostic & power LEDs
• Baud rates from 300 to 230400 bps Bulkhead mount, with optional DIN rail mount kit
• Pluggable screwless connector

BENEFITS

• Inputs & outputs protected against over voltage, ESD & short circuits
• Simple installation
• Protects PC from damage
• Eliminates ground loops
• No firmware which means no configuration needed
• Isolated inputs and outputs protect PC from damage
• Compatible with all NMEA 0183 devices
• Encapsulated electronics make the USG-2 robust for the harsh marine environment
• High retention USB socket
• Diagnostic LEDs to aid diagnosis
• Baud rates from 300 to 230400 bps suit all NMEA 0183 networking bandwidths
• Bulkhead mount, with optional DIN rail mount kit for quick and easy installation
• Pluggable screwless connector with locking latch & strain
